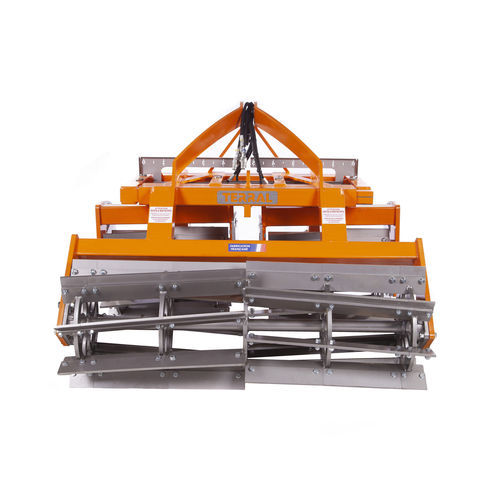

Front-mounted roller

3-point hitchrear-mountedvineyard

Description
Function: TERRAL chopper rollers are agricultural machines designed to produce mulch from cover crops in vineyards. They conserve soil moisture, contribute to carbon storage and reduce fuel consumption during inter-row maintenance.

Use: Recommended from April (before first treatments) until harvest. Optimal performance on well-developed cover crops (recommended height ≥ 50 cm). Suitable for all soil types and vineyard layouts.

How it works: Large open-work rollers ensure optimized ground contact and prevent debris build-up. Inclined, staggered anti-abrasion steel blades (10 mm) limit vibration and produce a controlled rippling action for consistent chopping. Interchangeable blades extend service life. Roller Ø510 mm provides stable contact and effective mulching.

Hitch & compatibility: Fitted with standardized 3-point hitches compatible with CAT1 and CAT2; can be mounted front or rear on the tractor. Can be combined with a TERRAL trimmer frame for integrated operations.

Feed rate: 10–15 km/h depending on cover crop density.

Product overview

• Designed for mechanical mulching of vineyards using cover crops
• Inclined, staggered anti-abrasion steel blades (10 mm)
• Interchangeable blades for extended tool life
• Open-work Ø510 mm roller to avoid debris build-up
• Standardized CAT1/CAT2 3-point hitch for front or rear mounting
• Multiple settings to adapt to vineyard types

Versions available

• Single chopper roller (7 models: working widths 1.00 m to 2.40 m)
• Double chopper roller (7 models: working widths 1.00 m to 2.40 m)
• Extendable chopper roller (3 models: working widths 1.20 m to 2.80 m)

Standard equipment / Key features

• Heavy-gauge structural steel frame
• Anti-abrasion steel blades, 10 mm thick
• Inclined blade mounting for roller rip action
• Staggered blade arrangement to reduce vibration
• Interchangeable blades
• Open-work roller design
• Ø510 mm roller diameter
• Self-aligning bearings
• Deflector support
• CAT1 and CAT2 3-point hitch compatibility

Options

• Pair of height-adjustable deflectors
• Ballast mass
• Surcharge for bevelled blades

Technical specifications

• Function: mechanical mulching of vineyards from cover crops
• Recommended use period: April to harvest (optimal on developed cover crops ≥ 50 cm)
• Feed rate: 10–15 km/h
• Versions: single, double, extendable (working widths as above)
• Roller diameter: Ø510 mm
• Blade: anti-abrasion steel, 10 mm, interchangeable, inclined mounting
• Blade arrangement: staggered to limit vibration
• Frame: heavy-gauge structural steel
• Bearings: self-aligning
• Hitch: 3-point CAT1 and CAT2 (front or rear)
• Options: adjustable deflectors, ballast, bevelled blades (surcharge)
