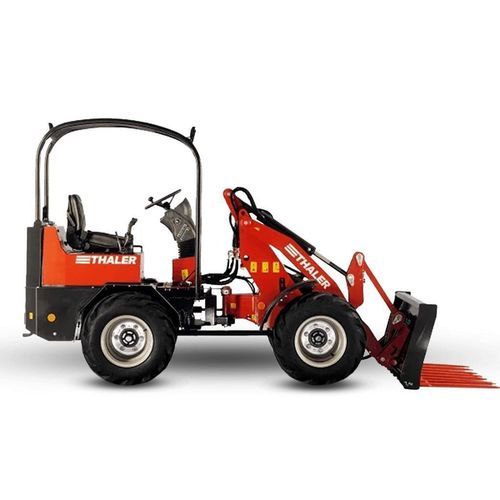

Rubber-tired loader 2230 S

compact

Overview
Compact yard loader for material handling and site maintenance. Model 2230 S with 25 HP (18.9 kW) diesel engine and no exhaust aftertreatment. Standard boom provides a load-over-height of 2,580 mm. Power transmitted to the axles via a drive shaft; automotive-style power distribution to wheels. Top speed 16 km/h. Standard equipment includes 3 LED work lights and a hydraulic quick hitch for tool changes from the operator seat.

Convenience & Operator Comfort

• Low step-in access, no drive shaft hump
• Adjustable multi-purpose steering column
• Adjustable ergonomic seat
• Ergonomic joystick for one-handed operation
• Thaler inch-pedal for precise speed control
• Hydraulic quick hitch for fast attachment changes

Major Applications

• Agriculture
• Construction
• Municipal services
• Groundskeeping / Landscaping
• Cattle farming
• Animal parks / Zoos
• Trade & Industry
• Timber industry

Technical Details
Engine: 3-cylinder Yanmar, 18.9 kW
Power: 25 HP
Displacement: 1,331 cm³
Cooling: Water cooler and oil cooler
Working hydraulic: approx. 38 l/min at 180 bar
Transmission: Axial piston drive + cardan (drive) shaft
Lifting capacity: 1,300–1,600 kg
Standard tyres: 10.0/75-15.3
Tipping load – fork 50 cm: 900 kg
Tipping load (straight, bucket): 1,100–1,400 kg
Top speed: 16 km/h (2-stage)
Battery: 12 V / 45 AH
Diesel tank capacity: 28–37 L
Overall width: 1,120 mm
Height: 2,210 mm
Drive: Hydrostatic system (365 bar)
Hydraulic oil tank: 35 L
Load-over-height: 2,580 mm
Exhaust aftertreatment: No
Operating weight: 1,820 kg

Technical specifications

• Engine: 3-cylinder Yanmar, 18.9 kW
• Power (HP): 25
• Displacement: 1,331 cm³
• Cooling system: Water cooler and oil cooler
• Working hydraulic: approx. 38 l/min at 180 bar
• Transmission: Axial piston drive with cardan shaft
• Lifting capacity: 1,300–1,600 kg
• Standard tyres: 10.0/75-15.3
• Tipping load (fork 50 cm): 900 kg
• Tipping load (bucket): 1,100–1,400 kg
• Top speed: 16 km/h (two-stage)
• Battery: 12 V / 45 AH
• Diesel tank: 28–37 L
• Hydraulic oil tank: 35 L
• Overall width: 1,120 mm
• Height: 2,210 mm
• Load-over-height: 2,580 mm
• Drive: Hydrostatic system (365 bar)
• Exhaust aftertreatment: No
• Operating weight: 1,820 kg
