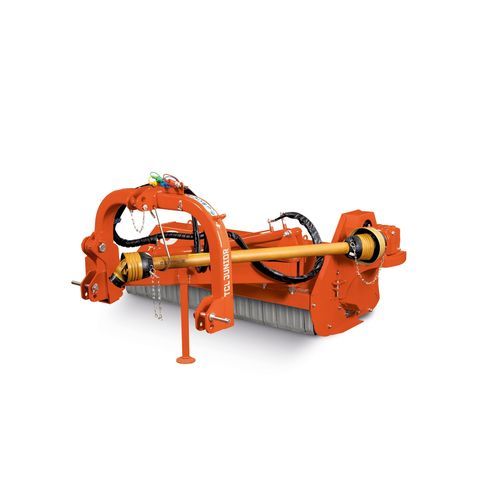

Mounted mulcher TCL JUNIOR - TCL JUNIOR SUPER series
offsetflailknife

mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted, offset
Technology
flail, knife
Applications
roadside
Other characteristic
PTO-driven, for tractors, folding
Cutting width

1,433 mm, 1,585 mm, 1,845 mm
(56.42 in, 62.4 in, 72.64 in)

Rotational speed

540 rpm
(3,393 rad.min-1)

Tractor power

50 ch, 60 ch, 70 ch
(50 hp, 60 hp, 70 hp)

Weight

457 kg, 469 kg, 510 kg
(1,007.51 lb, 1,033.97 lb, 1,124.36 lb)

Description

Designed for maintenance work on road sides and the banks of small plots of land or in orchards, the TCL JUNIOR mulchers are the perfect machines for cutting grass, small runners and brambles. The machine is equipped with double-edged hammers and an anti-clogging wheel, both Tierre patented, which enable facing even the most difficult maintenance work, which can occasionally arise. Thanks to the external multiplier group on the “SUPER” version, the mulcher can go completely outside of the tractor’s tread, making it particularly suitable for roadside maintenance. The machines are equipped with a Cardan joint, self-levelling system, a freewheel multiplier group, and an adjustable self-cleaning support roller on slides. STANDARD EQUIPMENT: - Tractor linkage Cat.2 - Oil sealed transmission with free wheel - Rest - Rotor bearings with double oscillating sphere - Electronically balanced rotor - Rotor diameter 127mm - Supporting roller with adjustable in height scraper - Roller diameter 134mm - P.T.O. shaft - Protecting carter - Cutting speed 45 m/sec - Body with double unloading shape - Rotor supports in monobloc casting
