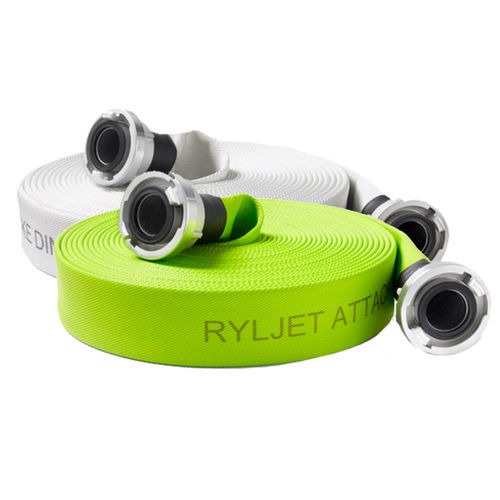

Hose Ryljet Attacke

supplydischargerubber

Overview
Textile lay-flat fire hose Ryljet Attacke manufactured to DIN 14811 (Class 1 & Class 2). Designed for rapid deployment and retrieval in firefighting operations. Single-jacket construction with an EPDM inner liner; Class 2 option adds an external PU coating for improved oil and chemical resistance. Low friction loss for maximum flow and reduced handling effort.

Applications
Recommended for municipal and industrial fire brigades and for use in light industry where rapid deployment and chemical resistance are required.

Construction
Single jacket hose produced from circularly woven 100% high-tenacity virgin polyester yarn with an inner liner of vulcanized EPDM compound. Class 2 variant features an external PU coating for enhanced resistance to oils and certain chemicals.

Abrasion Resistance
Designed to extend service life in applications where abrasion is a primary concern; provides superior abrasion performance under fire service conditions.

Ozone Resistance
No visible cracking of the inner lining or textile cover after exposure to UV and ozone under standard test conditions.

Chemical Resistance
Resistant to seawater and contamination by most common chemicals, hydrocarbons, oils and greases. A chemical resistance chart is available on request.

Service Temperature Range
Operates without apparent damage to inner lining or outer jacket between -22ºF (-30ºC) and 176ºF (80ºC).

Couplings
Available couplings: Storz, Guillemin, Barcelona and other industry-standard fittings upon request.

Standard lengths

• Standard 50 ft (15 m)
• 66 ft (20 m)
• 100 ft (30 m)
• 200 ft (60 m)
• Special lengths available on request

Characteristics / Technical specifications

• Product name: Ryljet Attacke
• Series / Standard: DIN 14811 (Class 1 & Class 2)
• Jacket: Single-jacket, circularly woven textile
• Cover material: 100% high-tenacity virgin polyester yarn
• Inner liner: Vulcanized EPDM compound
• Class 2 variant: External PU coating for improved oil and chemical resistance
• Maximum working pressure (indicative): 115 bar
• Service temperature range: -22ºF (-30ºC) to 176ºF (80ºC)
• Abrasion resistance: Designed for superior abrasion performance in fire use conditions
• Ozone resistance: No visible cracking of inner lining or textile cover under UV/ozone exposure
• Chemical resistance: Resistant to seawater and most common chemical contaminants, hydrocarbons, oils and greases
• Available couplings: Storz, Guillemin, Barcelona, etc.
• Standard lengths: 50 ft (15 m), 66 ft (20 m), 100 ft (30 m), 200 ft (60 m); special lengths available
