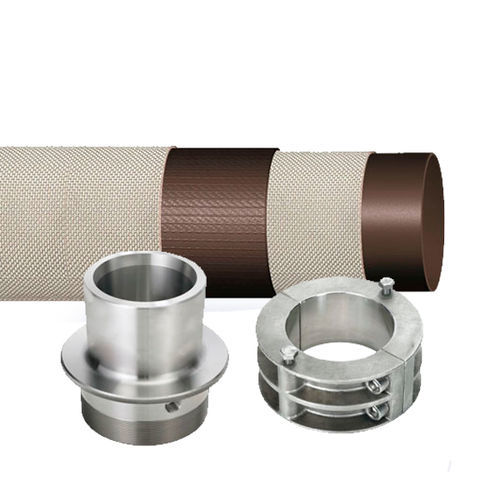

Hose Oroflex Pro

dischargesupplyrubber

Overview
Oroflex Pro is a flexible rubber well riser hose with double polyester textile reinforcement, engineered for installation of submersible pumps, wells and water transfer applications. Standard length available up to 200 metres with cut-to-size service. Operating temperature range: -20°C to +80°C.

Key features

• Flexible rubber construction with double polyester textile reinforcement
• Designed for submersible pump installation, well applications and water transfer
• Available diameters from 2" to 8" with multiple pressure ratings
• Standard lengths up to 200 m; cut-to-size option
• Operating temperature: -20°C to +80°C

Available sizes (Item / Code / Ø (in.) / WP (bar) / Max. depth (m))
Item | Code | Ø (in.) | WP (bar) | Max. depth (m)
F231000A | 1901 | 2″ | 30 | 300
F231000A* | 1901R | 2″ | 40 | 350
F559108A | 1902 | 3″ | 25 | 250
F559108A* | 1902R | 3″ | 40 | 350
F551693A | 1903 | 4″ | 21 | 200
F551729A | 1904 | 5″ | 21 | 200
F551730A | 1905 | 6″ | 21 | 200
F551731A | 1910 | 8″ | 16 | 150

Oroflex Pro Connection Systems
316 stainless steel conical removable coupling
Item | Code | Ø | Description
C655032 | 2PCF | 2″ | TERM PR CSV GAS Ø2″ WITH FUSE
C653000 | 2PC | 2″ | TERM PR SSV GAS Ø2″ WITH PLUG
C654264 | 3PCF | 3″ | TERM PR CSV GAS Ø3″ WITH FUSE
C653010 | 3PC | 3″ | TERM PR SSV GAS Ø3″ WITH PLUG
C654824 | 4PCF | 4″ | TERM PR CSV FUS GAS Ø4″ WITH FUSE
C654825 | 4PCT | 4″ | TERM PR CSV TAP GAS Ø4″ WITH PLUG
C655020 | 5PCF | 5″ | TERM PR CSV FUS GAS Ø5″ WITH FUSE
C652312 | 5PCT | 5″ | TERM PR CSV TAP GAS Ø5″ WITH PLUG
C655121 | 6PCF | 6″ | NEW OROFLEX WELL TERM FUS GAS Ø6″ WITH FUSE
C655122 | 6PCT | 6″ | NEW OROFLEX WELL TERM TAP GAS Ø6″ WITH PLUG
C650080 | 5306F | 6″ | TERM PR CSV FUS GAS Ø6″ Max. 100 Mt. WITH FUSE
C653060 | 5306 | 6″ | TERM PR CSV TAP GAS Ø6″ Max. 100 Mt. WITH PLUG
C655103 | 8PCF | 8″ | TERM PR CSV FUS NPT Ø8″ WITH FUSE
C655104 | 8PCT | 8″ | TERM PR CSV TAP NPT Ø8″ WITH PLUG

Galvanized iron terminal with flange
Item | Code | Ø | Description
C653802 | 5379 | 2″ | OROFLEX WELL A.G.PLET/SOLD HIL.2”
C653800 | 5380 | 3″ | OROFLEX WELL A.G.PLET/SOLD HIL.3”
C653810 | 5381 | 4″ | OROFLEX WELL A.G.PLET/SOLD HIL 4”
C653820 | 5382 | 5″ | OROFLEX WELL A.G.PLET/SOLD HIL 5”
C653829 | 5383 | 6″ | OROFLEX WELL SS PLET/SOLD HIL 6”

Galvanized iron terminal with external thread
Item | Code | Ø | Description
C653700 | 5370 | 2″ | OROFLEX WELL A.G.THREAD HIL 2”
C653710 | 5371 | 3″ | OROFLEX WELL A.G.THREAD HIL 3”
C653720 | 5372 | 4″ | OROFLEX WELL A.G.THREAD HIL 4”
C653730 | 5373 | 5″ | OROFLEX WELL A.G.THREAD HIL 5”
C675270 | 75270 | 6″ | OROFLEX WELL A.G.THREAD HIL 6”

316 stainless steel removable conical joint
Item | Code | Ø | Description
C653400 | 2PCE | 2″ | TERM PR SPLICE Ø2″
C653410 | 3PCE | 3″ | TERM PR SPLICE Ø3″
C653420 | 4PCE | 4″ | TERM PR SPLICE Ø4″
C653430 | 5PCE | 5″ | TERM PR SPLICE Ø5″
– | 6PCE | 6″ | TERM PR SPLICE Ø6″

Other related products

• Installation components
• Oroflex Well System (flexible PU well riser, certified potable water where applicable)
• Oroflex Well/Pro System accessories

Technical specifications

• Product name: Oroflex Pro System
• Denomination: Oroflex Pro
• Brand: TIPSA / OROFLEX
• Construction: Flexible rubber hose with double polyester textile reinforcement
• Application: Installation of submersible pumps, wells and water transfer
• Standard length: Up to 200 m, cut-to-size
• Operating temperature: -20°C to +80°C
• Available diameters and typical pressure ratings (Ø / WP / Max. depth): 2" / 30–40 bar / 300–350 m; 3" / 25–40 bar / 250–350 m; 4" / 21 bar / 200 m; 5" / 21 bar / 200 m; 6" / 21 bar / 200 m; 8" / 16 bar / 150 m
• Connection options: 316 stainless steel conical removable couplings, stainless removable conical joints, galvanized iron terminals with flange or external thread (multiple codes available)
• Typical items/codes: see tables above for complete list of item codes, sizes and descriptions
