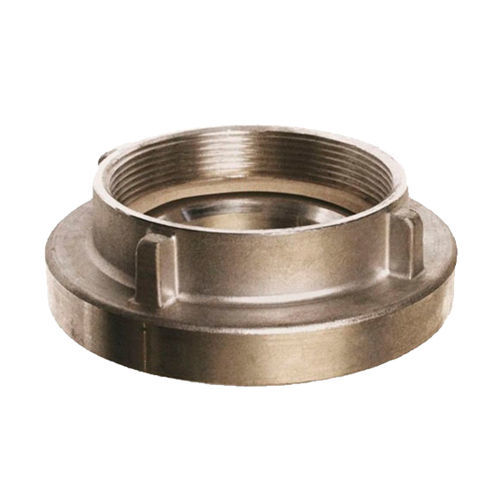

Threaded coupling C784100

female

General
STORZ fixed female thread coupling available in multiple Storz sizes and corresponding female thread sizes. Variants and internal item/code references listed below.

STORZ fixed female thread
25 – D | 31 | ½” | C784100 | 4149
25 – D | 31 | ¾” | C741500 | 4150
25 – D | 31 | 1” | C741510 | 4151
38 | 51 | 1 ½” | C742022 | 4160
38 | 51 | 2” | C742027 | 4161
45 | 59 | 1 ½” | C749778 | 4162
52 – C | 66 | 1 ½” | C741520 | 4152
52 – C | 66 | 1 ¾” | C741521 | 4164
52 – C | 66 | 2” | C741530 | 4153
65 | 81 | 1 ½” | C741840 | 4163
65 | 81 | 2” | C749780 | 4165
65 | 81 | 2 ½” | C741842 | 4166
75 – B | 89 | 2” | C741540 | 4154
75 – B | 89 | 2 ½” | C741550 | 4155
75 – B | 89 | 3” | C741560 | 4156
90 | 105 | 3” | C789434 | 4167
110 -A | 133 | 4” | C741570 | 4157
110 -A | 133 | 4 ½” | C785450 | 4158
110 -A | 133 | 5” | C741580 | 4159
125 | 148 | 5” | C749765 | 4174
150 | 160 | 6” | C741590 | 4168

Technical specifications

• Type: STORZ fixed female thread coupling
• Available variants: Storz size — Claw (mm) — Female thread — Item — Code (see table above)
• Size range: from 25 – D to 150 (see table for details)
• Claw diameter and matching female thread specified per variant (see table)
• Article numbers and internal codes provided for each variant
• Material / finish: not specified
• Typical applications: connections for systems using STORZ couplings
