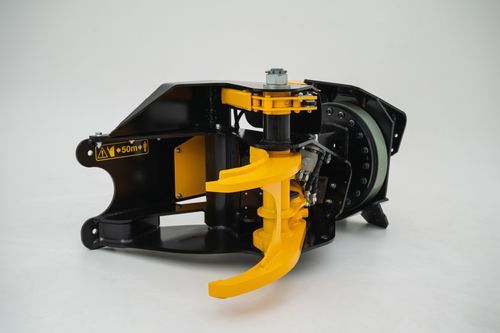

Excavator tree shear attachment TMK 300-R

with rotating headwith cutting bladefor wood

TMK 300-R is a TMK 300 equipped with a 360 degree rotation making cutting over hanging branches and working on uneven terrains nice and easy. The full rotation gives access even to the most difficult angles of cuts. The rotator includes a robust heel to give a good grip when moving the machines on slippery or difficult terrains. Especially with additional teeth the heel enables to clear the road in the woods by moving little rocks and stumps. TMK 300-R tree shear weighs only 545kg without a coupler plate. Thanks to its light weight, precise Finnish engineering work and high quality Hardox 400 & 500 steel it fits to excavators from 8 tonne up to 20 tonnes. The most optimal way is to have double acting hydraulic circuit for the rotator when the main circuit would control the shear to ensuring the maximum speed and cutting force. The Wireless kit is recommended if there is Collector and/or Delimber on the shear so that there is no wires running alongside the boom of the excavator.* Look more about the attachments from the News & Trends section! *Note: Pressure diverted Collector is exception when there is no need for electricity. TMK 300 in a nutshell - Cuts up to 300mm trees - Three in one - Delimb, Cut & Collector - Efficient optional attachments - Capsular structure - TMK Turbo and 3 other main cylinder options - Bolt-on coupler plates
