Operating control system IIMC
moisture

operating control system
operating control system
operating control system
operating control system
Add to favorites
Compare this product


Characteristics

Application
operating
Other characteristic
moisture

Description

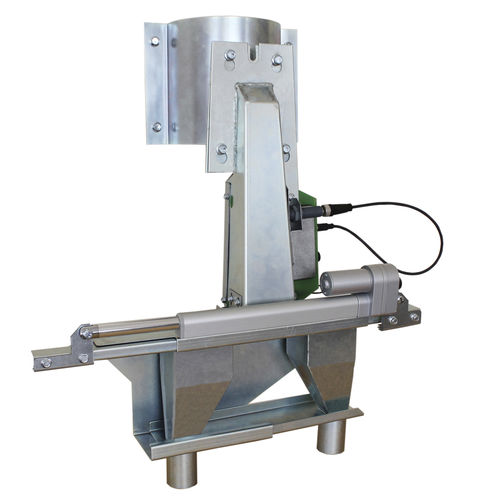

Anyone handling grain needs to check the moisture content of the product being handled on a regular basis. Tornum’s IIMC moisture meter simplifies this process and can be fitted anywhere along the flow of grain, directly or via a hose – after an elevator, before or after the dryer, etc. Operating specifications The moisture meter collects grain from the flow. The product to be checked is collected in a container with a level indicator. When the container is full, a moisture reading is done electronically. When the moisture level has been recorded, the container is emptied and the checked product drops back into the flow at a suitable point. After emptying, the measuring container is refilled and a further measurements are made – the frequency of measurements depends on the users’ requirements. The moisture sensor is connected to a control unit that can be installed at a suitable point along the flow. The unit allows the operator to enter the type of grain to be measured and to read each individual measurement, as well as average values. The operator can also inititate and stop measurements and calibration via the unit, or from the main control system. The meter will prompt the operator to carry out a calibration at certain intervals. When the operator acknowledges the calibration, the newly measured grain volume is emptied into a special calibration vessel. The operator is now given the option to measure the moisture content of this volume himself and perform the calibration. The process is simple – the operator just has to enter the manually measured moisture content and the meter will adjust itself to the new level.
