Characteristics

Application
for grain
Material
steel, galvanized steel
Form
hopper
Other characteristic
corrugated
Volume

Min.: 57 m³
(2,013 ft³)

Max.: 4,323 m³
(152,665 ft³)

Description

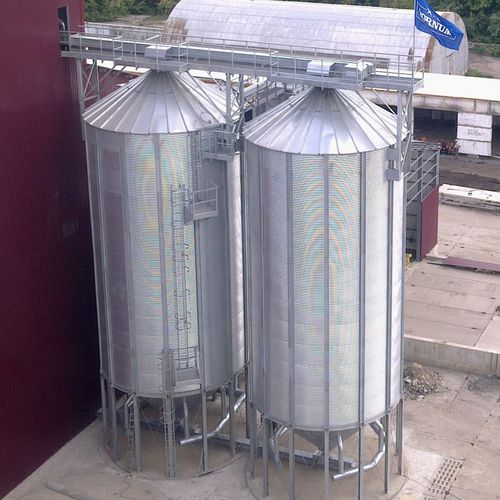

TORNUM offer two hopper models, 45° and 60°, to provide the best solution even for wet products and with high friction angles. Hopper sheets, compression rings and support steel are manufactured from corrugated hot-dip galvanized sheet metal. The sidewall sheets are manufactured from 0.8 mm through to 3.5 mm galvanized steel, up to 600 g/m². Design standards to Eurocode or ASAE/ANSI can be supplied together with specific seismic, snow load or wind considerations according to the requirements. Smooth wall hopper silos be supplied on request for some silo sizes. A complete range of accessories including sidewall doors, catwalks, ladders, platforms, aeration and temperature sensing systems can be offered.
