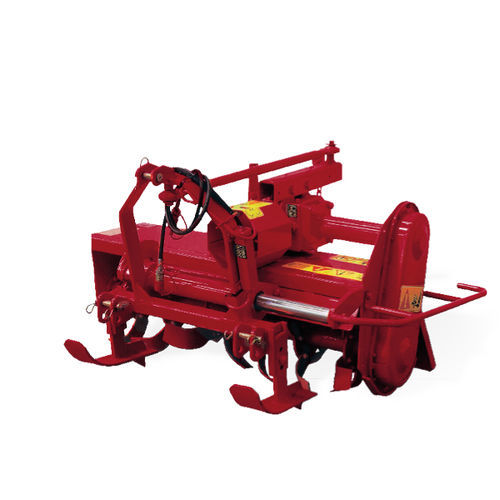

Rotary orchard tiller S1P Series

rotary orchard tiller
rotary orchard tiller
rotary orchard tiller
rotary orchard tiller
Add to favorites
Compare this product


Characteristics

Applications
for orchards
Width

120 cm, 135 cm, 145 cm, 165 cm
(47.24 in, 53.15 in, 57.09 in, 64.96 in)

Tractor power

Min.: 20 ch
(20 hp)

Max.: 50 ch
(50 hp)

Description

HYDRAULIC SIDE-SHIFT ROTARY CULTIVATOR WITH CHAIN DRIVE. (20 – 50 HP) The S1P series rotary cultivators are machines with chain drive and hydraulic shift, that can be activated by the driving seat of the tractor. They’re able to work the soil both in centered and in decentralised position with regard to the central axis of the tractor, and are ideal to work in fruit-farms, vineyards and in general in all farmings that need a lane soil working in areas difficult to be reached. They should be used with small tractors having a power between 20 and 50 hp and are provided, on demand, with front or side saddles. STANDARD EQUIPMENT CE safety device; Rotor with 4 curved hoes for disc turned outwards; 3 point linkage; Hydraulic shift on chromed axis; Depth regulating saddles; Joint with bolt limiter. ALTERNATIVES** Left rotation power take-off P.T.O.; 90° angle hoe; Lateral Depth regulating saddles. OPTIONAL REQUESTS Joint with clutch; Rotor 6 hoes for disc; Iron front wheels; Power take-off P.T.O. 750 rpm; 2 point linkage.
