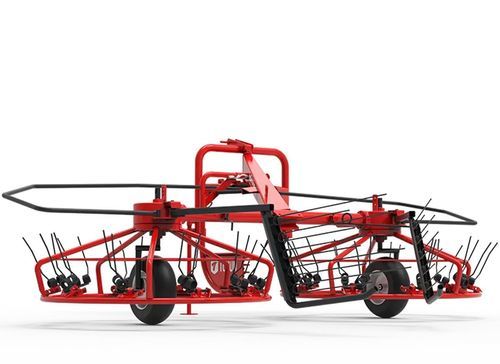

Tractor-mounted rake tedder HALE BOPP 360

Product Overview
Hale Bopp 360 is a combined rake and tedder designed for hay operations on small and medium farms. It performs raking and tedding with a single implement, enabling faster turnaround and reduced field passes. The unit offers adjustable drum height and a compact transport width for easy handling and operation with low‑power tractors.

Key Features

• Rake and tedder in one: performs hay raking and tedding in one machine, reducing labour and machine passes.
• Efficient coverage: 3.60 m working width and 6.00 m collection capacity in 3 passes for up to 3 ha/hour throughput.
• Adaptable to terrain: adjustable drum height allows effective crop control on flat or uneven fields.

Why Hale Bopp?
Hale Bopp combines two field operations into a single, easy‑to‑operate implement. With a 360 kg empty weight, two rotors and simple mechanical settings, it is compatible with tractors from 15 Hp and is ideal for livestock farms and contractors seeking to optimise field time and preserve forage quality.

Specifications

• Empty Weight: 360 kg
• Working Width: 3.60 m
• Working Width Collection: 6.00 m (in 3 passes)
• Capacity: 3 Ha/hour
• Transport Width: 3 m
• Rotor Count: 2 pcs
• Total Spring Count: 20 pcs
• Wheel Count: 2 pcs
• Wheel Size: 16x6,50-8
• Required Tractor Power: 15 Hp
• Required Tractor Speed: 540 RPM
