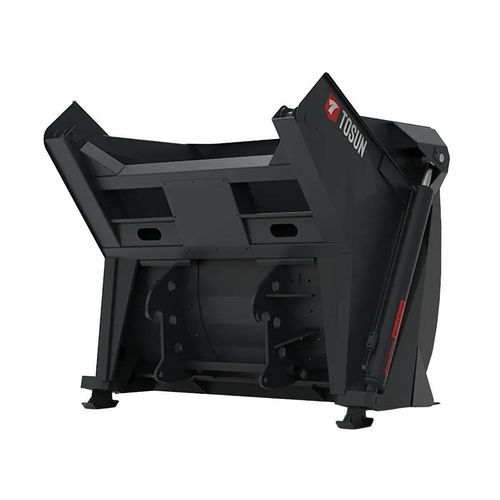

Silage unloading shovel bucket TOSUN Big Dipper

for agricultural maintenanceheavy-dutyfor loaders

Features

• Powerful cutting: Specially designed blade geometry delivers smooth, clean cuts of silage to reduce scattering and improve feed consistency.
• Minimum loss, maximum savings: Limits silage spillage and exposure to air during cutting to preserve nutritional value and reduce feed waste.
• Durable construction: High-strength steel body and reinforced mechanical components for reliable performance under heavy farm use and reduced maintenance needs.

Why TOSUN Big Dipper?

The Big Dipper silage shear grab is engineered for efficient silage handling with a blade layout that minimizes losses and contamination. Available in 2.2 m³ and 1.6 m³ volumes, it is suitable for a range of loader sizes and operational intensities. The robust steel structure and service-friendly design ensure long operating life and lower total operating costs.

Available Capacities

• 2.2 m³
• 1.6 m³

Technical specifications

• Capacity — 2.2 m³ / 1.6 m³
• Cutting Capacity — 2 m³ (2.2 m³) / 1.5 m³ (1.6 m³)
• Length — 1.67 m (2.2 m³) / 1.40 m (1.6 m³)
• Width — 2.23 m (2.2 m³) / 1.80 m (1.6 m³)
• Height — 1.89 m (2.2 m³) / 1.60 m (1.6 m³)
• Silage Cutting Height — 2.37 m (2.2 m³) / 1.90 m (1.6 m³)
• Cutter Section Width — 1.83 m (2.2 m³) / 1.48 m (1.6 m³)
• Cutting Depth — 0.45 m (both)
• Net Weight — 1420 kg (2.2 m³) / 940 kg (1.6 m³)
• Maximum Loading Capacity — 1200 kg (2.2 m³) / 900 kg (1.6 m³)
• Min. Lifting Capacity of Vehicle — 3000 kg (2.2 m³) / 1900 kg (1.6 m³)
• Min. Weight of Vehicle — 7000 kg (2.2 m³) / 4200 kg (1.6 m³)
• Min. Hydraulic Flow — 25 l/min (2.2 m³) / 18 l/min (1.6 m³)
• Max. Allowed Hydraulic Flow — 160 l/min (both)
• Required Electrical Power — 12 V (both)
