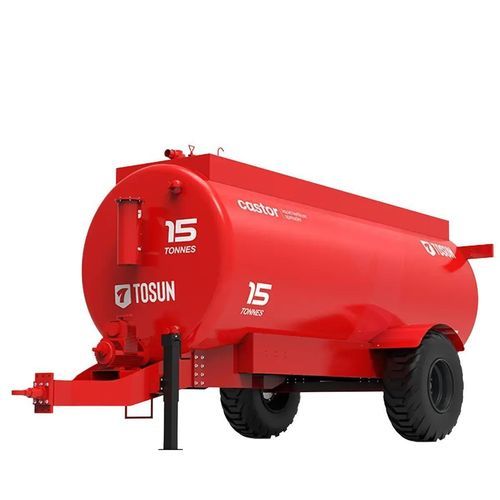

Not specified slurry tanker Castor

vacuumpressuretowed

Overview
Castor slurry tankers are high-capacity tankers engineered for liquid fertilizer distribution on large-scale agricultural operations. Available in 8–20 m³ sizes, they combine a robust steel tank, a 12,000 L/min double pump and hydraulic controls to enable rapid discharge and extended spreading ranges under demanding field conditions.

Key features

• Capacities: 8 m³, 10 m³, 12 m³ and 20 m³
• Maximum transport volume up to 20,000 L (20 m³ model) and spreading width up to 15 m (20 m³ model)
• 12,000 L/min double-sided pump for fast emptying (full tank emptied in ~20–25 minutes depending on model)
• Tank plate thickness: 6 mm; steel structure and hydraulic control system for field durability
• Hydraulic discharge gate for controlled emptying; manual trailer parking jack
• PTO drive 540 rpm; required tractor power: 80–130 HP depending on model

Available capacities

• 8 m³
• 10 m³
• 12 m³
• 20 m³

Technical table
Capacity | 8 m³ | 10 m³ | 12 m³ | 20 m³
Transport Volume | 8 m³ | 10 m³ | 12 m³ | 20 m³
Capacity | 8,000 kg | 10,000 kg | 12,000 kg | 20,000 kg
Length | 6.1 m | 6.5 m | 6.8 m | 9 m
Width | 1.9 m | 2.4 m | 2.4 m | 2.4 m
Height | 2.6 m | 2.8 m | 3.0 m | 3.5 m
Tank Sheet Thickness | 6 mm | 6 mm | 6 mm | 6 mm
Drive | 540 rpm | 540 rpm | 540 rpm | 540 rpm
Trailer Parking Jack | Manual drive jack | Manual drive jack | Manual drive jack | Manual drive jack
Required Tractor Power | 80 HP | 90 HP | 110 HP | 120–130 HP
Discharge Gate | Hydraulic | Hydraulic | Hydraulic | Hydraulic
Spreading Area Distance | 10 m | 10 m | 10 m | 10 m
Discharge Time | ~ 25 minutes | ~ 25 minutes | ~ 25 minutes | ~ 25 minutes
Working System | Special vacuum-and-pressure tanker pump (suction and pressure) | Special vacuum-and-pressure tanker pump (suction and pressure) | Special vacuum-and-pressure tanker pump (suction and pressure) | Special vacuum-and-pressure tanker pump (suction and pressure)
Optional Distribution System | Sub-soil distribution system with chisel | Sub-soil distribution system with chisel | Sub-soil distribution system with chisel | Sub-soil distribution system with chisel

Technical specifications

• Model options: 8 m³, 10 m³, 12 m³, 20 m³
• Tank plate thickness: 6 mm (uniform across listed capacities)
• Structure: steel; page references a 5 mm structural value (see technical notes)
• Pump capacity: 12,000 L/min (double-sided pump); manufacturer indicates full-tank emptying in ~20 minutes for certain models; technical table lists ~25 minutes as typical
• Spreading width: up to 15 m (20 m³ model); standard listed spreading distance 10 m per capacity
• PTO drive: 540 rpm
• Trailer parking jack: manual
• Discharge gate: hydraulic
• Required tractor power: 8 m³ → 80 HP; 10 m³ → 90 HP; 12 m³ → 110 HP; 20 m³ → 120–130 HP
• Working system: special vacuum-and-pressure tanker pump (suction and pressure)
• Optional distribution: sub-soil distribution with chisel tine
