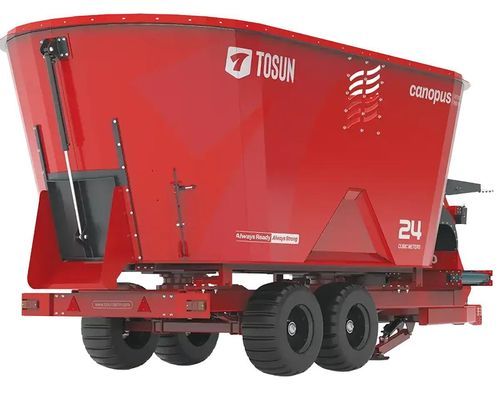

Vertical mixing wagon Canopus

towedside dischargesingle-auger

Overview
Canopus is a vertical auger feed mixer engineered for modern livestock operations. Its special auger geometry provides fast, homogeneous mixing of forage and concentrates. The lowered chassis facilitates loading and the observation panel enables safe monitoring of the mixing process. Optional integrations (weighing system, conveyor, double discharge) adapt the machine to different production workflows.

Key Features

• Fast and effective shredding: bales are shredded, cut and mixed with roughage in short cycles to improve feed preparation throughput.
• Ration homogeneity: design minimizes residual feed on the machine floor to ensure consistent rations at distribution.
• Reduced losses with optimized body: patented body geometry lowers leftover feed and waste.
• Modular options: weighing system, conveyor belt, double discharge, loading bucket and hydraulic jack available depending on model.
• Observation window: standard on most variants for safe process control.

Available Capacities

• 1.5 m³
• 3 m³
• 4 m³
• 6 m³
• 8 m³
• 10 m³
• 12 m³
• 16 m³
• 20 m³
• 24 m³
• 28 m³

Technical highlights (excerpt)

• Curb weight: from 540 kg (1.5 m³) up to 9,500 kg (28 m³) depending on capacity.
• Overall dimensions (W×H×L): total width ~1.37–2.81 m, total height ~1.45–3.52 m, total length ~1.74–8.00 m (varies by model).
• Wagon dimensions and clearances: wagon width 1.10–2.67 m, height 1.00–2.40 m, length 1.70–5.90 m depending on capacity.
• Minimum power required: 20–130 Hp across the range; PTO speed: 540 rpm standard.
• Auger and base plate thickness: auger 8–15 mm, base plate 8–20 mm according to model.
• Knives: 4–24 units depending on capacity and configuration.
• Transmission: gearbox across all variants; auger system: single vertical on smaller units, double vertical on larger units.
• Tire and undercarriage options vary by size; conveyor belt, jack and loading bucket may be standard or optional according to model.
• Weighing system and double discharge: available as options to integrate into feeding lines.
