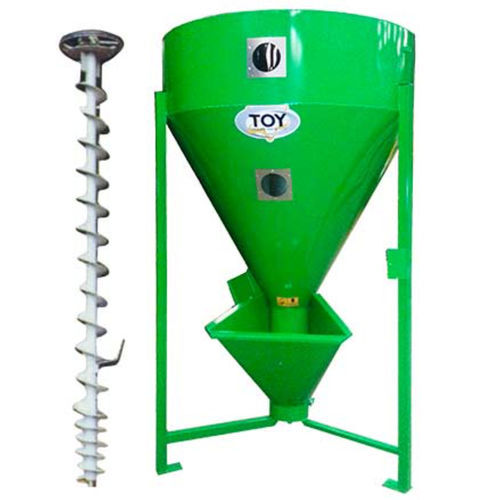

Vertical mixer

stationary

With a capacity of 1150 to 4500 liters. Mixed with a central screw, with a not-ending mesh start and an anti-vault knife. Rotation of 270 rpm. Engine from 1.5 to 5.5 kW. The average mixing time is 20 minutes per tonne. The drain is done by a gravity exit. TOY Group Vertical Mixers Our vertical blenders have a capacity of 1150 to 4500 liters. The mixture is made by a central screw, with a not fine mesh start and an anti-vaulting knife. Its rotation speed is 270 rpm with an engine of 1.5 to 5.5 kW. The average mixing time is 20 minutes per tonne. The drain is done by a gravity exit (at 800mm from the ground) and the incorporation of the inputs is done, either by a tangential input (in pneumatics) or by the hopper concentrated at the foot of the blender. Simple, accessible and economical Central screw: start not fine net with anti-vaulting knives (with access hatch) Decompression up, decompression option down (-2 meters with decompression box) 50-litre concentrate hopper Tangential entrance, drain trap, gravity exit Material: Gravitational exit with guillotine trap Drain door at the foot of the screw for easy cleaning Concentrated hopper (height 730mm) Access door to the anti-vaulting knife of flours Two rounds of decompression Options: Tangential Entry – 100 or 160mm Automated gravitational output Decompression box and decompression handle for low-rise building
