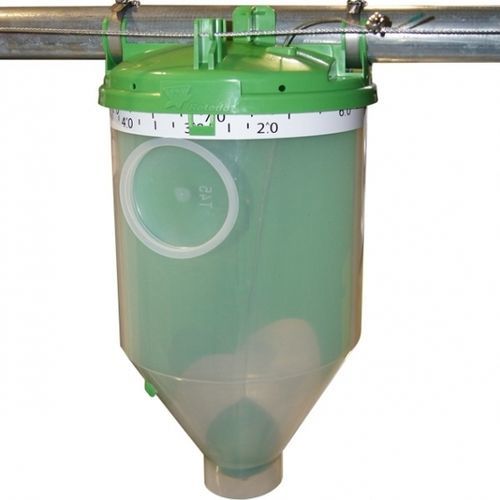

Pneumatic automatic feed distribution unit

cattlehopper

TOY Group’s pneumatic composition distribution facility. Flow from 600 to 1200 kgs/hour and 3 tons / Time 60 mm galvanized diameter back-up pipe Blower 2 models: (SCL50 SH MOR: 4 kW – maximum push-back distance 100 meters) maximum pressure 300 Mb – flow 156 M3 / (SCL65 DH MOR: 4 kw – maximum push-back distance 150 meters) pressure at 300 Mb – flow 156 m3 / maximum pressure 550 Mb – flow 78 m3 Calculation method: refoulement distances are given in horizontal length / 1lock – 10 meters /horizontal 1 curve – 4 metres /horizontal / 1 m vertical – 2 meters /horizontal Opportunity to resume: under silo, under hopper, under blender, etc. Benefits (breeding distribution) Flow from 600 to 1200 kgs/hour and 3 tons / Time Distribution by feeder or individual group Weigher mixer for ration preparation No cross between different mixtures Drained 60mm piping between distributions Weighing quantity – Quantity delivered Incorporating up to 70 moist corn (at 35 humidity) Multi-phase automation system Distribution distance 250 Meters (maxi) Electrical power from 5.5 to 11 kW The principle of pneumaticdistribution. The TOY Group’s pneumatic distribution prevents any deshuffling during transport to storage. The cyclone and other elements of the pneumatic circuit (anti-blending pipe..) retain all their homogeneity to the mixtures transported.
