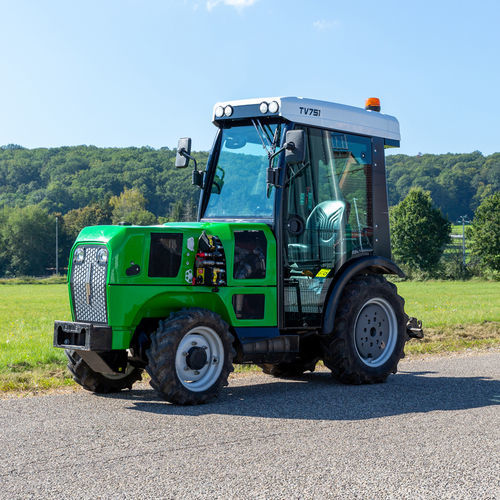

Narrow tractor TV751

mechanical transmissionvineyard3-cylinder

The TractoVigne® TV751 is a narrow vineyard tractor designed for stable, safe and comfortable operation in narrow rows and on steep or uneven terrain.

Overview
The tractor combines a low centre of gravity, compact overall width and a Stage V 3‑cylinder engine to support demanding viticultural tasks. Two cab configurations are available to match operator protection and comfort needs.

Cab options and comfort

• Category 4 pressurised cab: pressurisation to protect the operator from dust, particles and harmful gases; equipped with air conditioning for operator comfort.
• Category 1 non-pressurised cab: heated demisting system for clear visibility and comfort in cold or wet conditions.
• Compact cab design for optimum visibility; integrated door opening system reduces risk of branches catching; sealed joints for long-term tightness.

Engine

• John Deere Power Systems, 3-cylinder, 2.9 L, delivering 55 kW (74 hp) and 293 Nm at 1500 rpm.
• Stage V compliant with particulate filter and automatic, controllable maintenance management.

Transmission

• CARRARO® Drive Tech mechanical transmission with three ranges of four speeds.
• Electro-hydraulically controlled differential lock and 4-wheel drive.
• Rear PTO with electromechanical engagement; PTO speeds: 540 and 540E.
• Mechanical lever for direction reversal and differential braking on rear axle.

Hitching and implement handling

• Rear-mounted three-point linkage compliant with CAT01 standard.
• Electro-hydraulically controlled pendulum lift with floating function to follow ground irregularities.
• Tilt and offset adjustment to adapt implements to row position and slope.
• Front weight carrier for improved load distribution and attachment of additional weights or tools.

Stability, dimensions and maneuverability
The tractor features a very low centre of gravity for enhanced stability on slopes. Key dimensions: width 1.05 m; wheelbase 1,900 mm; turning radius 2.75 m. Compatible row spacing: 1.30–1.55 m. Suitable for steep, greasy or sloping terrain.

Fast, secure connection

• Flat-faced hydraulic multi-couplings to reduce oil leak risk; handles for locking and decompression.
• 4 double-acting and 2 single-acting couplers (front/rear) for rapid implement assembly.

Manufacturing and origin
Designed, built and assembled in Alsace, France; approximately 70% of components made in France and 90% of parts made in Europe.

Technical specifications

• Model: TractoVigne® TV751
• Engine: John Deere Power Systems, 3-cylinder, 2.9 L, Stage V
• Power: 55 kW (74 hp)
• Torque: 293 Nm @ 1500 rpm
• Width: 1.05 m
• Wheelbase: 1,900 mm
• Turning radius: 2.75 m
• Row spacing compatibility: 1.30–1.55 m
• Transmission: CARRARO® Drive Tech mechanical (3 ranges x 4 speeds)
• Drive: Electro-hydraulically controlled 4-wheel drive and differential lock
• PTO: Rear PTO with electromechanical engagement; 540 / 540E
• Rear linkage: 3-point hitch CAT01; electro-hydraulic pendulum lift with floating, tilt and offset
• Cab options: Category 1 (non-pressurised, demisting & heating) and Category 4 (pressurised with air conditioning)
• Emissions: Stage V; particulate filter with automatic maintenance management
• Origin: Designed and assembled in Alsace, France (majority EU components)
