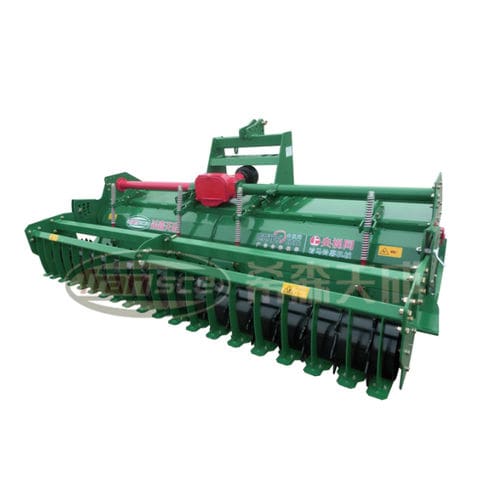

Rotary tiller 1G-250, 1G-300

1G-250 type, 1G-300 type rotary tiller is Our company independent research and development design of a plowing machinery. This section of the rotary tiller has a good effect of loose soil, broken soil capacity, farming surface formation and other characteristics, one-time operation can achieve the effect of soil broken ground, The work width are 2.5 meters and 3 meters Supporting traction This rotary tiller is driven by the tractor's power output shaft, the land preparation machinery. When used, the machine is attached to the suspension mechanism of the tractor, and the power of the tractor is connected with the power of the machine by means of the drive shaft (universal joint). The power of the tractor is transmitted to the main shaft of the gearbox via the power output shaft and the universal joint assembly. After the gearbox decelerates and changes direction, it is decelerated by a set of cylindrical gears, and the power is transferred to the rotary knife shaft. Shaft rotation work. Supporting traction effect shown in Figure 2. The design of the shoeboard In the lowest position on both sides of the machine design with a snowboard, as shown in Figure 3. The design of the mechanism can play a limited role, with a zigzag-shaped adjustment of the depth of the structure, so as to ensure that the rotary tiller work to maintain the same depth of operation to improve the smooth operation of the process.
