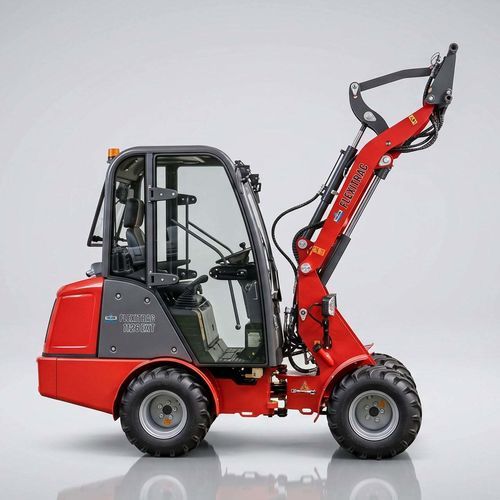

Rubber-tired loader 1126-EXT

compactwith cab

Product description
The Flexitrac 1126 CAB Extended builds on the 1126 CAB platform to deliver improved stability and higher lifting performance for operators who handle heavier loads. An extended wheelbase, a repositioned rear counterweight and increased operating weight enhance balance and lifting capacity while retaining compact external dimensions.

Increased lifting power
The loader is fitted with dual lift cylinders that provide greater lifting force and more consistent performance under load. The machine combines compact footprint with elevated capacity, suitable for agricultural, contracting and property maintenance tasks.

Designed for demanding tasks
The Flexitrac 1126 CAB Extended maintains the maneuverability and operator accessibility of the standard model while offering greater stability and capacity for more intensive work cycles.

Key features

• Extended wheelbase for increased stability.
• Rear-positioned counterweight improves balance.
• 1,400 kg lifting capacity.
• Loader equipped with dual lift cylinders for higher lifting force.
• Compact design for easy manoeuvring in confined areas.

Advantages

• Improved stability through extended wheelbase
• Better balance via rear counterweight positioning
• Increased operating weight for higher lifting capacity
• Dual lift cylinders for stronger, more consistent lifting performance
• Compact, easy-to-manoeuvre design suitable for varied applications

Technical specifications

• Model: 1126-EXT
• Engine: Kubota
• Lifting capacity (kg): 1400
• Operating weight (kg): 2070
• Travel speed: 12 km/h
• Hydraulic flow: 32
• Tipping load, loader fully extended, machine straight (kg): 1150
• Tipping load, loader fully extended, machine articulated (kg): 800
• Distance from attachment point (mm): 550
• Overall length with standard bucket (mm): 3878
• Overall length without bucket (mm): 3068
• From axle centre to bucket hinge pin (mm): 430
• Wheelbase (mm): 1485
• From axle to counterweight surface (mm): 1062
• Height over cab (mm): 2220
• Seat height (mm): 1128
• Overall operating height (mm): 3440
• Lifting height (mm): 2556
• Loading height (mm): 2238
• Max. dumping height (mm): 1694
• Working distance for M (mm): 482
• Digging depth (mm): 183
• Overall width (mm): 1110
• Track width (mm): 803
• Ground clearance (mm): 174
• Outer radius (mm): 2690
• Max. turning radius (mm): 2390
• Inner turning radius (mm): 1110
• Articulation angle: 43°
