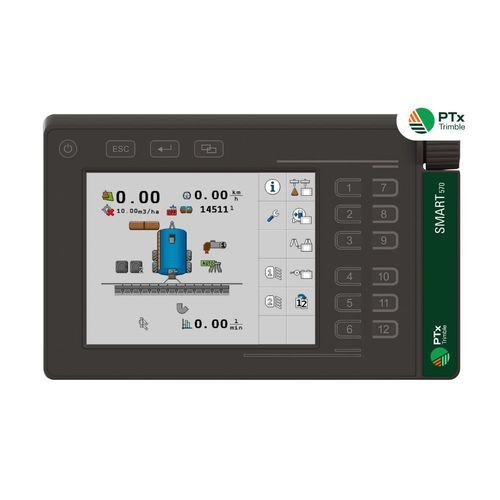

Display screen with touchscreen SMART570™

on-boardISOBUS

Product overview
The SMART570 universal terminal display is a flexible, cost-effective ISOBUS universal terminal for tractors and implements whose ECUs support the ISOBUS UT standard. It provides ISOBUS UT and AUX‑N functionality, enabling display and control of machine and implement data from multiple ECUs and integration alongside OEM or aftermarket displays.

Key features

• Programmable ISOBUS universal terminal (UT) control for equipment from any manufacturer supporting UT and AUX‑N.
• CAN connectivity via cabled CPC (9-pin) connector for power and ISOBUS communication.
• AEF certified and ISO 11783 compliant for reliable ISOBUS interoperability.

Ergonomics and usability

• Flat 5.7" (14.5 cm) VGA colour capacitive dual touch screen for clear visibility in-cab, including bright-light conditions.
• Twelve programmable softkey buttons and a rotary encoder for rapid numeric entry; includes membrane keyboard for tactile feedback while mobile.
• Compact housing for flexible mounting positions to suit operator workflow.

Durability

• IP66K rated enclosure providing protection against dust and high-pressure water jets.

Technical specifications

• ISO 11783 ISOBUS compliant; AEF certified for UT and AUX‑N
• 9-pin CPC power/ISOBUS connection (CAN)
• 5.7" (14.5 cm) VGA colour capacitive dual touch screen
• Rotary encoder and membrane keyboard; 12 programmable softkeys
• IP66K rated enclosure; compact form factor
