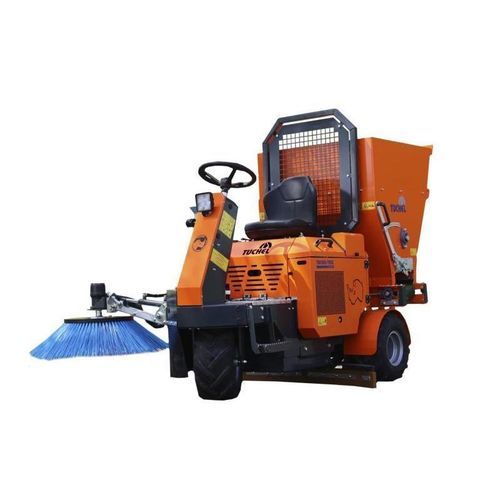

Self-propelled sweeper Tuchel-Trac FarmXpert

for barnsside-mountrear attachement

Overview
The Tuchel-Trac FarmXpert is a self-propelled 3-in-1 vehicle designed for dairy farms to combine sweeping, re-littering and gap cleaning in a single pass, reducing manual labour and improving operational efficiency.

Design & operation
Compact dimensions and hydraulic front-wheel steering provide high manoeuvrability and clear visibility in narrow cubicle alleys. The hydrostatic travel drive ensures precise, sensitive control. A robust Kubota diesel engine (10.3 kW) supplies reliable power. The operator station offers an optimal seating position with logically arranged controls and easily accessible maintenance points for efficient daily use.

Working tools & functionality
The right-side brush is positioned for effective cubicle edge cleaning and is infinitely height-adjustable via hydraulic control. A centrally mounted slurry scraper works close to the edge of slatted floors for efficient manure removal. The rear-mounted bedding tool includes an agitator shaft, a dosing metal plate and interchangeable inserts for adapting to different spreading materials. The bedding box can be hydraulically lowered to pick up material, or filled by hand or loader. Bedding height is hydraulically adjustable to match cubicle dimensions and reduce dust exposure for the operator.

Options

• Side brush Ø 850 mm with hydraulic lifting (right)
• Slurry scraper 120 cm with hydraulic lifting
• Container extension 610 l / 900 l
• Various stirring fingers & inserts for the bedding tool

Technical data

• Engine: Kubota diesel, 10.3 kW (14 PS) at 3,200 rpm
• Hydraulic performance: 25 l/min at 3,200 rpm
• Hydraulic tank capacity: 27 l
• Cylinders: 2
• Total width: 1,100 mm
• Turning circle: 2,600 mm
• Weight (ready for operation, complete equipment): 971 kg
• Side brush: Ø 850 mm, hydraulic lifting (right) available
• Slurry scraper: 120 cm with hydraulic lifting available
• Container extension options: 610 l, 900 l
• Bedding tool: hydraulically lowerable, height adjustable, agitator shaft, dosing metal plate, various inserts and stirring fingers
