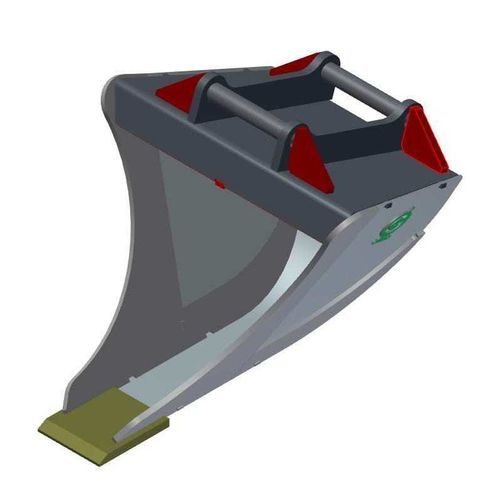

Excavation shovel bucket GVB 28-S30

Add to favorites

Compare this product

Do you want to buy directly? Visit our shop.

Go to the Underhaug AS website for more information

Characteristics

Applications

for excavation

Width

Max.: 900 mm
(35.4 in)

Min.: 200 mm
(7.9 in)

Capacity

Max.: 650 l
(171.71 gal)

Min.: 28 l
(7.4 gal)

Bucket weight

Max.: 340 kg
(749.57 lb)

Min.: 40 kg
(88.18 lb)

Description

Available in sizes ranging from 28 liters to 650 liters. Teeth or front blade as desired. Can be supplied for most types of quick couplings or directly mounted to the machine. - Model (liter) - Width (mm) - Weight (kg) - Machine (ton) - Tooth System - GVB 28-S30: 300/200, 40 kg, 1.5 – 2 tons, FF - GVB 45-S30FF: 350/200, 80 kg, 2 – 4 tons, FF - GVB 45-S30: 350/200, 100 kg, 2 – 4 tons, M20 - GVB 70-S40: 350/250, 90 kg, 2 – 4 tons, FF - GVB 200-S50: 600/400, 190 kg, 7 – 10 tons, FF - GVB 300-S60: 900/400, 340 kg, 10 – 15 tons, FF - Available sizes: 28 to 650 liters - Teeth or front blade options - Compatible with most quick couplings or direct mounting Technical Specifications: - Model range: GVB 28-S30, GVB 45-S30FF, GVB 45-S30, GVB 70-S40, GVB 200-S50, GVB 300-S60 - Width: 200 mm to 900 mm - Weight: 40 kg to 340 kg - Machine compatibility: 1.5 to 15 tons - Tooth systems: FF, M20
