Tractor stone picker SB

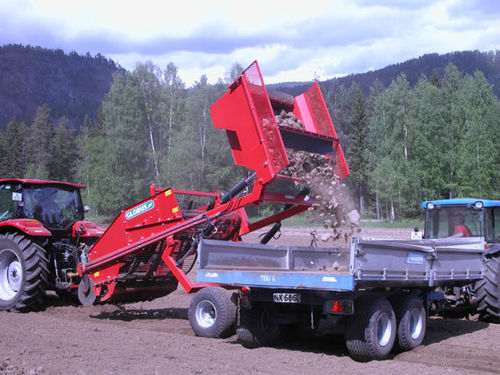

The Globus model SB is a single-operator machine designed to collect stones ranging in size from 3 to 25 cm in diameter. The stone picker can be used after raking with a stone rake or directly on harrowed soil. The machine requires a trained operator, and the user manual should be read before connection and operation, even if the user has prior experience with similar equipment. The Globus model SB is built on a frame with an independent wheel system that can be height-adjusted hydraulically during the emptying/tipping of the stone box. The machine is connected to the tractor’s lower link arms, and the working height is adjusted using the tractor’s linkage system. The SB is powered by the tractor’s power take-off (PTO) using a drive shaft equipped with a slip clutch to prevent overload. The SB stone picker is delivered complete with a PTO shaft featuring a slip clutch and a 33 mm opening in the main belt. It also comes with standard wheel dimensions of 400/60-15.5. - Single-operator stone picker for stones 3–25 cm - Can be used after raking or directly on harrowed soil - Hydraulically adjustable independent wheel system - Connects to tractor lower link arms - Powered by tractor PTO with slip clutch - Standard wheel size: 400/60-15.5 - Delivered with PTO shaft and slip clutch Technical Specifications: - Model: GSS 33mm / GSS 44mm - Working width: 160 cm - Transport width: 195 cm - Power requirement: 60 hk - Stone box capacity: 3400 kg - Working depth: 0-30 cm - Main belt opening: 33 mm / 44 mm - Weight: 2100 kg
