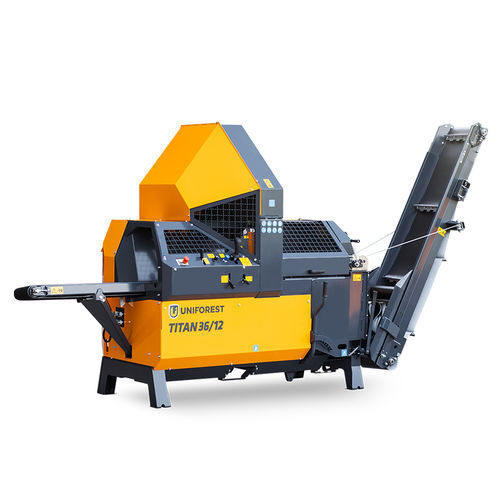

Circular saw firewood processor TITAN 36/12

towedwith belt conveyorPTO-driven

Overview
TITAN 36/12 is the smallest and fastest firewood processor in the TITAN family, built for high productivity in a compact footprint. Available as a petrol-powered, road-trailer-mounted version for full mobility. An 850 mm carbide-tipped circular saw cuts logs up to 360 mm diameter; standard 10 t splitting force (optional 12.5 t) and BOOMSPEED automatic cylinder speed adaptation enable a typical splitting cycle of 2.2 s.

About the machine
Compact, fast and versatile, the TITAN 36/12 combines mechanical-hydraulic control with an operator-friendly layout. Multiple drive options (PTO, PTO + electric motor, petrol engine) allow use with tractors, fixed electric supply or independent petrol power; the trailer version provides transport mobility and on-site operation.

Standard equipment

• BOOMSPEED
• 850 mm circular saw (carbide-tipped)
• 10 t splitting force (standard)
• 5 m telescopic output conveyor
• Hydraulic conveyor belt offset left–right ±15°
• Partial splitting cylinder stroke (half stroke)
• 2/4, 2/6 or 2/8-way splitting knife
• Circular saw belt drive disengagement lever

Optional equipment

• Increased splitting force up to 12.5 t
• 2/10-way splitting knife (for softer wood)
• Last log flap
• Aggressive feed roller
• Integrated lifting table
• Oil cooler

Key features and components
The machine uses a carbide-tipped 850 mm circular saw resistant to foreign materials and designed for high cutting speed. Saw feed and cutting speed are hydraulically controlled. BOOMSPEED employs double-piston cylinders for two movement speeds: a high-speed approach for low-resistance runs and a working speed for resistant wood, reducing the splitting cycle by up to 40%.

Notable components (product page highlights)

• Feed-in conveyor belt — smooth, controlled feeding of logs into the saw
• Hydraulic log stabilizer — secures the log for precise cutting
• Cutting diameter up to 360 mm (enabled by 850 mm blade)
• Dampers for controlled drop of cut pieces into the splitting channel
• 10 t splitting force standard (optional increase to 12.5 t)
• Versatile splitting knife options (2/4, 2/6, 2/8 standard; 2/10 optional)
• Half-stroke activation of splitting cylinder for shorter logs
• Aggressive feed roller (optional) for improved grip
• Last log flap (optional) to prevent tipping of the final log
• Adjustment of conveyor belt position L/R ±15°
• Power supply cover (prevents PTO and electric motor being connected simultaneously)
• Belt drive disengagement lever for the circular saw

Top dashboard / controls (hotspots)

• Partial stroke activation for the splitting cylinder
• Emergency stop for the splitting cylinder
• Splitting and control pressure gauges
• Electric motor ON/OFF switch (where fitted)
• Emergency stop of the machine
• Circular saw feed speed adjustment
• Feed rollers forward/backward (right/left), splitting (up), log clamping and sawing (down)
• Logs forward/backward (up/down)
• Conveyor belt speed adjustment
• Last piece flap ON/OFF
• Circular saw belt drive disengagement/engagement
• Output conveyor extension/retraction
• Splitting knife up/down
• Output conveyor inclination adjustment

Technical data (summary)
Model: CD | CD+E | TR GASOLINE
Drive: PTO (tractor drive) | PTO (tractor drive) / electric motor | petrol engine
Max. log diameter (mm): 360 | 360 | 360
Splitting force (kN / t): 100 / 10 (125 / 12.5 optional) | 100 / 10 (125 / 12.5 optional) | 100 / 10 (125 / 12.5 optional)
Log length (cm): 20 / 25 / 33 / 40 / 50 (available lengths) | same | same
Saw blade diameter (mm): 850 | 850 | 850
Electric motor power (kW): - | 11 | -
Recommended tractor power for drive (kW / hp): 15 / 20 | 15 / 20 | -
Recommended tractor power for transport (kW / hp): 45 / 60 | 45 / 60 | -
PTO speed (min-1): 420–490 | 420–490 | -
Linkage category: II | II | -
Operation: Mechanical-hydraulic | Mechanical-hydraulic | Mechanical-hydraulic
Oil capacity (l): 65 | 65 | 65
Conveyor belt offset left-right (°): 15 | 15 | 15
Conveyor belt width (mm): 330 | 330 | 330
Conveyor belt length (m): 5 | 5 | 5
Feed-in conveyor belt height (mm): 910 | 910 | 910
Feed-in conveyor belt length (mm): 1900 | 1900 | 1900
Width (mm): 2350 | 2350 | 3800
Depth (mm): 1150 | 1150 | 1900
Height (mm): 2500 | 2500 | 2500
Weight (kg): 950 | 1100 | 1100

Technical specifications

• Model name: TITAN 36/12
• Maximum cutting diameter: 360 mm (36 cm)
• Saw blade diameter: 850 mm (carbide-tipped)
• Splitting force: 10 t standard, optional 12.5 t
• Splitting cycle (BOOMSPEED): 2.2 seconds (typical)
• Conveyor: 5 m telescopic output conveyor; feed-in belt length 1900 mm; feed-in belt height 910 mm; belt width 330 mm; lateral offset ±15°
• Drive options: PTO (tractor), PTO + electric motor (CD+E), petrol engine (TR GASOLINE)
• Electric motor option (CD+E): 11 kW
• Operation: mechanical-hydraulic control with ergonomically distributed commands
• Oil capacity: 65 L
• Weights: from ~950 kg (CD) to ~1100 kg (CD+E / TR GASOLINE)
