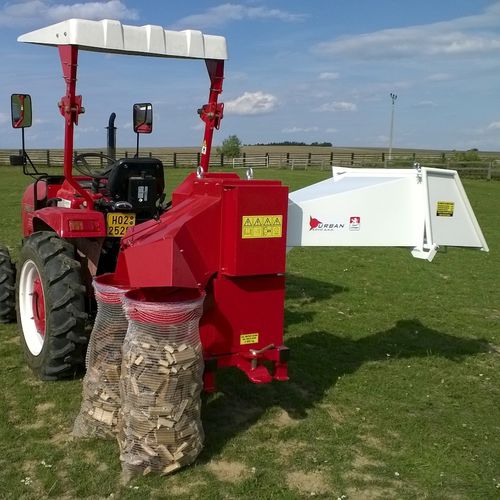

Hydraulic wood splitter TR75 2P

horizontaltractor-mountedPTO-driven

The URBAN TR75 logger is supported on the three-point hitch of the tractor. It is designed especially for small tractors, but can be used without a problem even under a strong tractor. The optimum power of the tractor is 25 hp and more, the minimum power is 15 hp. The TR75 differs from the TR70 type by featuring a V-belt drive. The V-belt drive serves as shock-absorber and also acts as an overload clutch, which is not needed for this type. The large 90 kg pulley serves as a flywheel, which also contributes to shock absorption and smoother running. The torque on the TR75 cardan is half compared to TR70 (with processing the same branch diameter). UP TO DIAMETER 80 MM Part of the machine is: 50 pcs of raschle bags, safety chains, tow hitch with tow ball ISO 50, operators manual including declaration of conformity. Technical parameters Weight:380 kg Max. diameter of soft freshwood (pine):80 mm Max. diameter of fresh hardwood (oak, hornbeam):65 mm Max. diameter of dry hardwood (oak, hornbeam):50 mm Max. diamensions of block of wood (spruce):60 x 60 mm Max. diameter of wooden board (spruce):190 x 20 mm Log length (not adjustable):6 - 13 cm Logging device inlet dimensions:200 x 200 mm Inlet hopper dimensions:700 x 400 mm Top performance:50 bags per hour Category of 3-point hinge:1 a 2 PTO max. rotation speed:540 / min. Power of tractor (min.):15 hp Power of tractor (recommended):25 hp and more Adjustable (telescopic) frame of logger:Yes - 3 positions Number of logging blades:6 The gap between the blade of the cutting blades:approx. 0,1 mm Lifetime of blades per one grinding:100 - 500 m3 of small logs Overload protection:Belt slip
