Hydraulic wood splitter HM 70 D2,6
horizontalmountedmachine

hydraulic wood splitter
hydraulic wood splitter
hydraulic wood splitter
hydraulic wood splitter
hydraulic wood splitter
hydraulic wood splitter
hydraulic wood splitter
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Mounting
horizontal
Mobility
mounted
Other characteristics
machine

Description

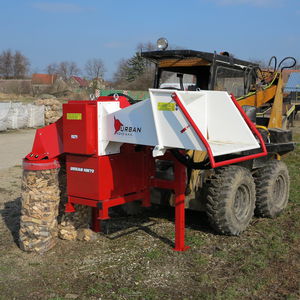

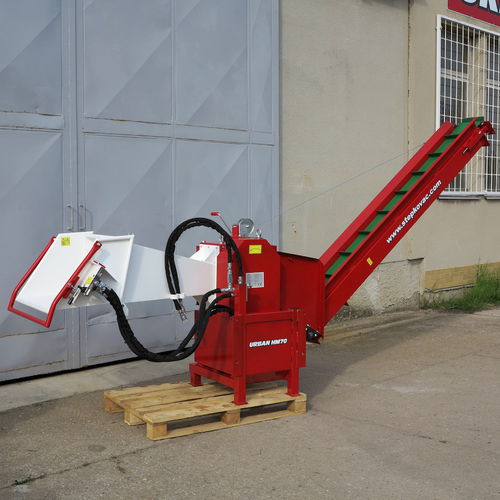

The branch logger URBAN HM70 is driven by a hydraulic motor. It processes material with a diameter of up to 8 cm and the resulting logs length is 6 - 13 cm. The source of hydraulic oil is the hydraulic power unit to which the machine is connected via the connecting frame and 2 hydraulic quick couplings. We produce various types of connecting frames, making it possible to attach a branch logger to a wide range of hydraulic power units such as skid steer loaders, farm manipulators, construction or communal machines. The connecting frame is an accessories. UP TO DIAMETER 80 MM Part of the machine is: operators manual including declaration of conformity. Technical parameters Weight:515 kg Max. diameter of soft freshwood (pine):80 mm Max. diameter of fresh hardwood (oak, hornbeam):65 mm Max. diameter of dry hardwood (oak, hornbeam):50 mm Max. diamensions of block of wood (spruce):60 x 60 mm Max. diameter of wooden board (spruce):190 x 20 mm Log length (not adjustable):6 - 13 cm Logging device inlet dimensions:200 x 200 mm Inlet hopper dimensions:700 x 400 mm Blade rotation speed (rpm):250 / min. Oil flow rate:40 l / min. Top performance:5 m3/h Nominal oil pressure:18 MPa Sliding legs:Yes Number of logging blades:6 The gap between the blade of the cutting blades:approx. 0,1 mm Lifetime of blades per one grinding:100 - 500 m3 of small logs Overload protection:Pressure valve Dimensions in working position (length x width x height):Depends on conveyor position Dimensions in transport position (length x width x height):107 x 181 x 304 cm Logs output:Conveyor 2,6 m Conveyor drive:V-belt drive Height of the end of conveyor at angle of 30°:195 cm
