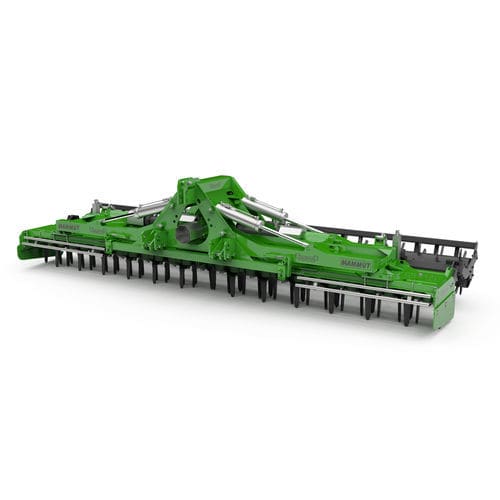

Power harrow MT-MAMMUT

depth controlfoldingwith roller

The MAMMUT rotary harrow has been designed to meet the demands of large farming companies and third-party contractors. Excellent results are obtained both on ploughed land and hard soil with a low rate of crop residue. Blade shaft couplings on tapered roller bearings matched face-to-face on the bottom part of the gearbox. The different components are opened and closed by 4 hydraulic cylinders supplied standard across the entire range, offering improved stability and sturdiness during works. The advantage of the folding machine is that once its parts have been closed, it can be transported by road in compliance with current regulations. Standard Equipment •3 point universal hitch (Category 3 and 4) •Front oscillating bar hitch •Single speed unit, 1000 rpm •Central fixed cardan (tractor side fork 1 3/4” Z20) •Side cardan with safety bolt (model 5000-6000) •Side cardan with disk clutch (model 7000-9000) •Space between rotors, 22 cm •Adjustable conical bearings •Quick blade release •Circular blade holder shaft “HEAVY DUTY” version •Central and side gears (with cementation treatment), “HEAVY DUTY” version •Transmission body in oil bath •Hydraulic opening and closing of the bodies with 4 jacks and controlled block valves •Adjustable height side skirting •Mechanical jack regulation of the levelling bar by height and distance from the blades In roller versions •Rear rollers regulated by 4 hydraulic jacks with block valves •Automatic rear roller alignment device “by Valentini”
