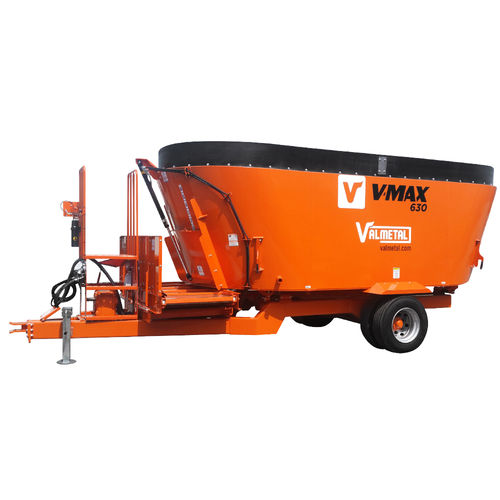

Vertical mixer V-MAX series
trailedfront dischargeside discharge

vertical mixer
vertical mixer
vertical mixer
vertical mixer
vertical mixer
vertical mixer
Add to favorites
Compare this product


Characteristics

Auger orientation
vertical
Mobility
trailed
Discharge type
side discharge, front discharge, rear discharge
Number of screws
2-auger
Other characteristic
PTO-driven
Capacity in m³

10.6 m³, 12.2 m³, 15.2 m³, 17.8 m³
(374.3 ft³, 430.8 ft³, 536.8 ft³, 628.6 ft³)

Description

V-Max 630 Height : 96’’ (244 cm) Length : 288’’ (732 cm) Width : 107’’ (272 cm) V-Max 430 Height : 100’’ (254 cm) Length : 148,5’’ (379 cm) Width : 88,5’’ (220 cm) Ultra Resistant Augers made of abrasion resistant steel Heavy Duty Trailer The V-Max is welded on a heavy-duty trailer specifically designed to support heavy loads providing optimum results and long lasting performance. Knives Tungstene carbide coated auger knives for a greater lifespan Benefits Fully welded tub ¼’’ (6 mm) thick Tower style planetary gear box ¾’’ (19mm) thick floor Left, right, front, rear unloading door available 540 RPM PTO shaft with shear bolt (also available at 1000 RPM) Chute with magnet available Tungsten carbide coated auger knives Heavy-duty independent trailer ULTRA RESISTANT Augers made of abrasion résistant Steel HEAVYDUTY TRAILER The V-Max is welded on a heavy-duty trailer specifically designed to support heavy loads, providing optimum results and long lasting performance. KNIVES Tungstène Carbide coated auger knives for a greater lifespan
