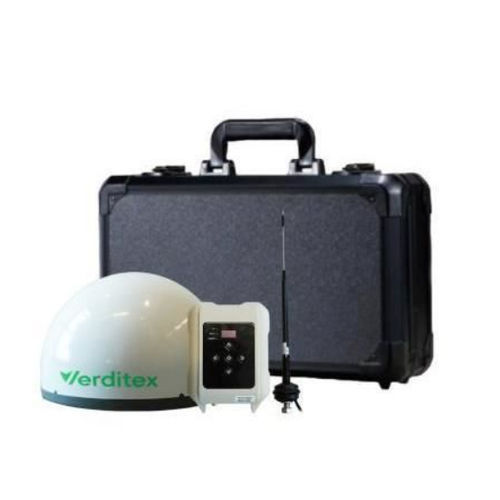

RTK base station FBS100

for surveyingwith receiver

Overview
The FBS100 RTK base station provides local GNSS RTK corrections and radio transmission for precision farming and agricultural machinery automation. The unit integrates a full-band GNSS receiver and a radio transmitter to deliver reliable local positioning corrections to auto-steer systems in areas without cellular or network RTK services.

Design & Durability
The device features an integrated GNSS module and antenna in a sealed enclosure designed to industrial protection standards. Rated IP67, the FBS100 is built for continuous outdoor operation across a wide temperature range.

Key Functional Descriptions

• GNSS receiver outputs RTK correction data to auto-steering and machine control systems for centimeter-level positioning.
• Radio transmitter provides wide-area coverage with low power consumption and supports multiple simultaneous terminal connections.
• Automatic detection of RTK serial baud rate and support for configurable Tx power settings to match deployment needs.
• Supports multiple radio communication protocols and selectable baud rates for flexible integration with existing equipment.

Highlights

• Suitable for global use
• Environmentally compatible operation
• Short latency for time-sensitive corrections
• Stable and continuous signal output
• User-friendly interface and simple configuration
• Operational in extreme temperatures
• Quick setup for local reference station use
• High communication adaptability

Use Cases
Designed as a local RTK reference station for agricultural applications, the FBS100 supplies precise positioning and reliable radio corrections to tractors, sprayers and harvesters to support precision seeding, guidance and automated workflows.

Technical specifications

• Model composition: Integrated GNSS receiver + radio transmitter
• GNSS: Full-system, full-frequency band GNSS module
• Integrated antenna: Yes (antenna integrated with GNSS module)
• Protection rating: Industrial-grade IP67
• Radio transmitter: Wide coverage; supports multiple terminal connections
• Power: Low power consumption; transmitter optimized for efficiency
• Communication: Multi-radio protocols supported; multi-baud selection; automatic RTK serial baud identification
• Performance: Accurate RTK positioning; short latency; stable signal output
• Operational environment: Operates in extreme temperatures; high adaptability; suitable for worldwide deployment
• User experience: Easy configuration and user-friendly interface
