Digital veterinary X-ray system DynaVet

for domestic animalswith table

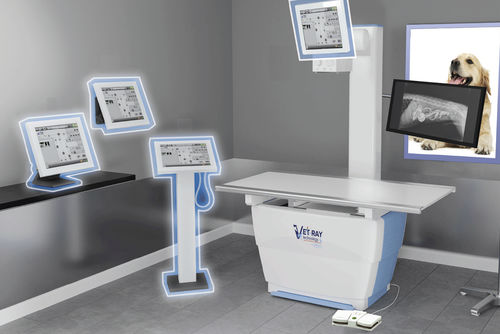

APR Anatomical Program Selection of the type of animal. Body part selection (single RAD.) The Anatomical Program workflow allows you to quickly image any animal in RAD or Dynamic mode in 3 easy steps Body part selection (Dynamic mode.) SINGLE TOUCH 3.0 Dual independent monitors are included – The 17-inch console monitor provides patient information, technique settings and static images from RAD mode. The 24 inch Monitor displays dynamic images from “Cine” (video) the Dynamic mode. Both monitors have optional mounting locations. The console has the 4 shown optional locations. The Dynamic monitor has 3 optional mounting locations: tube stand, floor stand or wall mount. Diagnostic and Image Review Mini-Pacs software and viewer included Extensive measurement tools for both static and dynamic evaluation Patient Data Management according to DICOM 3.0 protocol Remote support via Internet connection Specifications Constant Potential kW ratings 32 kW kVp Range 40-125 kVp mAs Range 0.1 – 500 mAs mA Range 10/12.5/16/20/25/32/40/50/64/80/100/125/ 160/200/250/320/400 X-Ray tube Rotating Anode (0.6 / 1.2 mm) X-Ray generator Line Powered 208-240 VAC Single Phase or 3 Phase Exposure time 0,001 – 10 seg TABLE SPECIFICATIONS Table top type 4 way float type Table top lenght Standard 5-ft; optional 6-ft Maximum load patient weight 210 lb. or 96 kg Brakes Electromagnetic 17×17 Flat Panel Detector SPECIFICATIONS Panel – Amorphous silicon active TFT-diode array Scintillator – Direct deposition CsI TI Pixel Matrix – 4288 x 4288 Pixel Pitch – 100 micron ADC – 16 bit Image Transfer Rate – 600 ms Physical Size – 17 inch x 17 inch
