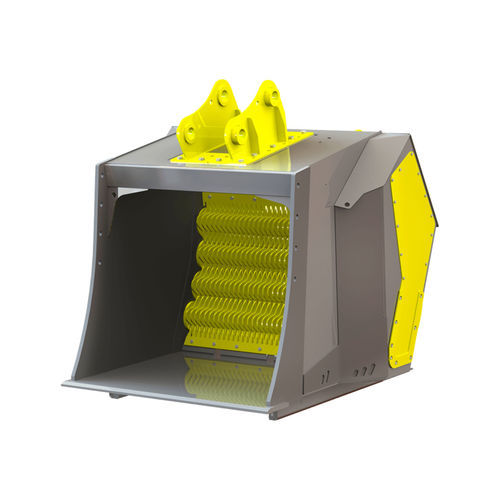

Screening shovel bucket VPH 4-1700demolitionconstruction sitefor excavation
Add to favorites
Compare this product
Characteristics
- Type
- screening
- Applications
- for excavation, construction site, demolition, for forestry maintenance
- Other characteristic
- for loaders
- Width
2,050 mm
(80.7 in)- Capacity
Min.: 2.7 m³
(95.35 ft³)Max.: 3 m³
(105.94 ft³)- Bucket weight
6,060 kg
(13,360.01 lb)- Carrier weight
Min.: 31,000 lb
(14,061 kg)Max.: 77,000 lb
(34,927 kg)
Description
VPH 4-1700 is the big brother of the 3-1700 screening bucket model with four horizontal rotors for larger machine sizes. There are also several customized versions available for screening and crushing based on specific use cases.
Technical Specifications
Flow Rate
Oil Flow min – max: 53 — 95 gal /min
Pressure
Oil Pressure: 3,000 — 3,600 psi
Volume
Screen area: 17 ft2
Dimensions
Height: 67.0 in
Depth: 76 4/5 in
Features
- Lightweight
- Easy and quick to use
- Wide range of blade options
- Ideal for both excavators and wheel loaders
- Cost-effective
In the design of Vipermetal screening buckets, user needs and comfort have been taken into account. The screening bucket is easy to attach and detach from the machine, saving time and effort on the job site. Additionally, its structural durability and reliability ensure a long lifespan and minimal maintenance requirements
VIDEO
Catalogs
VPH 4-1700
1 Pages
