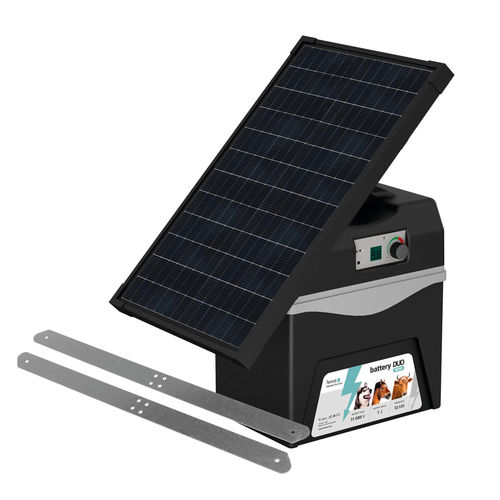

Solar-powered fence energizer DUO BD10

battery-poweredplug-inelectric netting

Battery electric fence energizer with 1 J. Signalling LEDs, adjustment button and LCD display to indicate fence voltage, battery voltage and power level 1-19. Robust construction made of impact-resistant, UV-resistant plastic. Powered by a connected 30 W solar panel. Space for 12V 44 Ah battery. A 30 W solar panel can be connected to the battery pack to ensure continuous operation. With the option of solar charging of the electric fence, you get an energy self-sufficient system that can be operated even in remote areas. The solar panel is fixed with a mounting bracket and can be positioned towards the sun as required. Package contents: - fencee 1 J battery pack - bracket + solar panel 30 W - integrated cable for connecting the power supply to the battery - fencee DUO 14 V 1.5 m power adapter - 100 cm connection cable (eyelet-heart) - ground cable 150 cm (eyelet to eyelet) - grounding rod for the fence - fencee warning plate - operating instructions Power source - 230 V ~ / 12 V Energizer consumption 230 V - 1,2 W Energizer consumption 12 V - 20 mA - 100 mA Output energy - 1 J Input energy - 1,4 J Output voltage - 11000 V Output voltage 500 Ω - 5000 V ON/OFF - YES - LED ON/OFF - YES LED impulse - YES LED low battery voltage - YES LED error check - YES LCD display - YES Power Save mode - YES TEOR. max. CEE - 42 km Low vegetation - 12 km Medium vegetation - 6 km High vegetation - 1,5 km Earthing 1 m - 1× El. fence nets - 5× Weigth - 5010 g Dimension - 38 × 31 × 21 cm Solar panel - 30 W Maximum power voltage (Vmp) - 19,28 V Maximum power Current (Imp) - 1,56 A Open circuit voltage (Voc) - 22,92 V Short circuit current (Isc) - 1,65 A
