Front-mount mower Jumbo Flex
flailPTO-driven

front-mount mower
front-mount mower
front-mount mower
front-mount mower
front-mount mower
Add to favorites
Compare this product


Characteristics

Mounting
front-mount
Technology
flail
Other characteristic
PTO-driven
Working width

109 cm, 145 cm, 181 cm, 217 cm, 253 cm
(42.91 in, 57.09 in, 71.26 in, 85.43 in, 99.61 in)

Power required

48 ch, 55 ch, 68 ch, 82 ch, 95 ch
(48 hp, 55 hp, 68 hp, 82 hp, 95 hp)

PTO speed

540 rpm, 750 rpm, 1,000 rpm
(3,392.9 rad.min-1, 4,712.4 rad.min-1, 6,283.2 rad.min-1)

Weight

1,055 kg, 1,110 kg, 1,165 kg, 1,225 kg, 1,370 kg
(2,325.9 lb, 2,447.1 lb, 2,568.4 lb, 2,700.7 lb, 3,020.3 lb)

Description

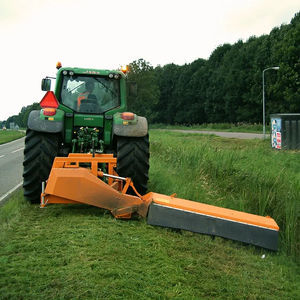

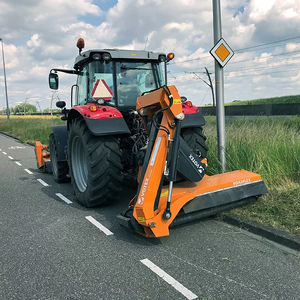

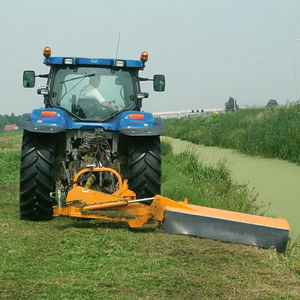

The side flail mower with the same qualities as the Jumbo, only more versatile because of a rotatable frame. By rotating the main frame, you are able to adjust the height of the hinge point of the mowing head. This makes it possible to mow shallow ditches and higher located lawns. Two hydraulic accumulators bring about a smoothly functioning hydraulic system. The proven drive train and mowing head of the VOTEX Jumbo are applied in the same way to the Jumbo Flex, as is the three point hitch with the SWING-ON-LINE® system. The advantages of the Jumbo Flex: •With the same qualities as the Jumbo, only more versatile •Side flail mower with rotatable frame •Possible to mow shallow ditches and higher located lawns •Suitable to work under almost all condition
