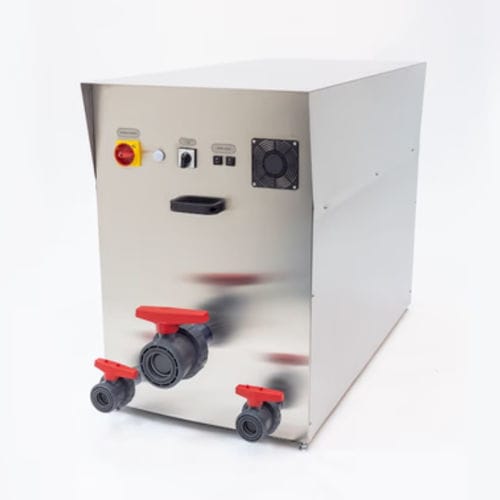

Livestock farming ozone generator Gea

for disinfectionwater treatmentoxygen

Gas Maximum Dissolved Oxygen Saturation Up to 410-480% Built-in Oxygen Generation Built-in Ozone Generation Gas-Tank Add-On Option Water Average Water Flow [m3/hour] 4.5 Max Pressure [Bar] 8 Operation Temp [C 5–40 Min / Max Inlet Pipe Height [m] -2/+3 Min / Max Discharge Pipe Height [m] -3/+2 Controls Control Modes Manual / Waboost Cloud Oxygen Flow Meter Adjustable Ozone Concentration Total Working Hours Counter Power Indicator Lights Remote Controls Operation Timer Smart Operation Setup Alarms & Events Management Current Power Consumption Total Power Consumption Default Sensors Cabinet Temperature Water Pressure High Temperature Alarm / Switch Pump Low Pressure Alarm / Switch Oxygen Pressure Optional Sensors Water Temperature Optional Oxygen Concentration Optional Dissolved Oxygen Optional Oxidation-Reduction Potential Optional Total Suspended Solids / EC Optional pH Optional Conductivity & Salinity Optional Turbidity Optional Total Organic Content Optional Biological Oxygen Demand Optional Chemical Oxygen Demand Optional Electrical Voltage / Phase 220 / 1 Hz 50 Tri Phase / 380V Optional 60 Hz/110 V Optional Variable Frequency Drive Optional Power [kW] 1.3 Pump Power [kW] 0.75 Max Current [A] 8.1 Setup Wetted Parts Material AISI 316 / Noryl Self-Priming Option Pipe Connection Threaded Female Inlet [inch] 1.0 Discharge [inch] 0.75 Dimensions Height [mm] 670 Width [mm] 670 Length [mm] 530 Weight [kg] 55
