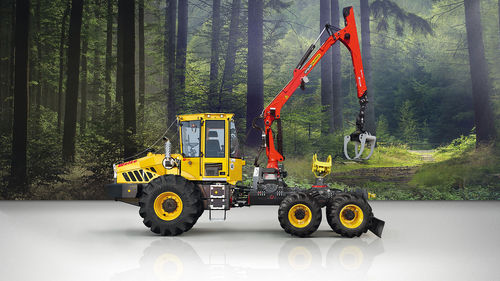

Forestry skidder with grab W130K

self-propelledwith grab

The W130K is a very compact, short and therefore highly maneuvrable 6-wheel multipurpose machine, the bestselling model in its class. The W130K can also be supplied as a 6-wheel skidder. It is outfitted as a clam bunk skidder, a crane, a rope pulley, a forwarder (up to 4-meter logs) and, if requested, it can be equipped with the new SIB drive for seamless distribution. Specifications Engine -Volvo Penta 4-cylinder Motor, water-cooled -Torque max. 840 Nm at 1,200 - 1,500 RPM -Emissions stage TIER 4 final, with SCR catalytic converter -Displacement 5130 ccm -electronically controlled ventilator drive/Cleanfix as an option -Fuel tank capacity approx. 170 l -AdBlue® tank 25 litre Working hydraulics -Load-sensing hydraulic system -Regulating pump with max. 280 l/min at 2,100 RPM -biodegradable hydraulic oil, 290 l Power Transmission - SIB -Hydrostatic power unit with 2-gear Transmission, which can be switched when driving (SIB) -Planetary axles with multi-disc brakes running in oil bath, for W130K: Rear axle tandem axle -front and rear 100% separated switchable differential locks -Dual-circuit braking system, spring-controlled parking Brakes -three drive mode stages which can be switched when driving -Crawler gear, driving with fixed speed, driving with reduced speed Speed -1st gear 0 - 13 km/h -2nd gear 0 - 34 km/h Electric System -Wel-Can with 5-driver memory; all important information retrievable on modern display -System voltage 24 V -Battery power 2 x 95 Ah -Alternator 110 A Steering -Articulated steering, steering movement +/- 46°
