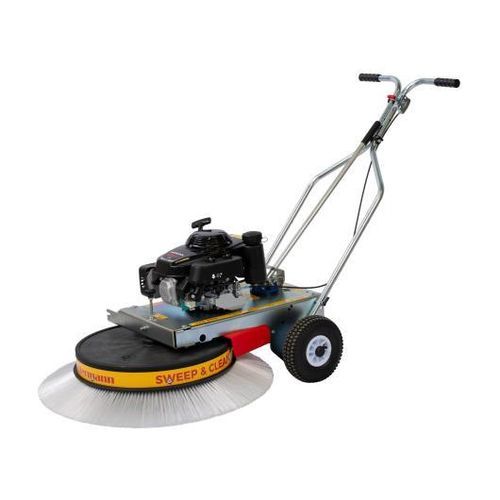

Walk-behind sweeper WR 870 GXV160

groundcarefor green spaceswith combustion engine

Overview
For industrial use. In the special configuration the Honda GXV160 OHV industrial engine provides increased power and the unit features dual wheels. The widened wheel stance is specifically suitable for tennis court and sports facility maintenance. The Honda industrial engine is designed for frequent, continuous use.

Brushes and fill

• Polypropylene brush
• Polypropylene-wire mixed fill
• Wire brush

Accessories (selected options)

• Windrower
• Wire brush
• Polypropylene-wire mixed fill
• Polypropylene brush

Technical data (table)
Drive: Honda GXV160 OHV, 4-stroke petrol engine
Duty: continuous
Brush: Polypropylene brush, Polypropylene-wire mixed fill, Wire brush
Brush rotation: left/right
Working width: 870 mm
Brush cup height (including brush): 18 cm
Area performance: 2500 m²/h
Weight: 68 kg
Tyres: pneumatic 260/85 with grooved ball bearings
Guide/feeler wheel: 125 mm solid rubber wheel
Accessories: windrower

More power for difficult conditions
The WR 870 with Honda GXV160 provides higher power via the industrial engine and, with dual wheels, is particularly suitable for sports facility maintenance (e.g., tennis courts). The widened wheel stance improves ground contact and enables longer operating periods.

Videos
Product and comparison video available (e.g., showing differences WR870 vs. WKB660).

Characteristics / Technical specifications (summary)

• Drive: Honda GXV160 OHV, 4-stroke petrol engine
• Duty: continuous / designed for long operating periods
• Working width: 870 mm
• Brush cup height including brush: 18 cm
• Area performance: approx. 2500 m²/h
• Weight: approx. 68 kg
• Tyres: pneumatic 260/85 with grooved ball bearings
• Guide/feeler wheel: 125 mm solid rubber wheel
• Brush types: Polypropylene, Polypropylene-wire mixed fill, Wire brush
• Accessories: windrower (for large areas)
