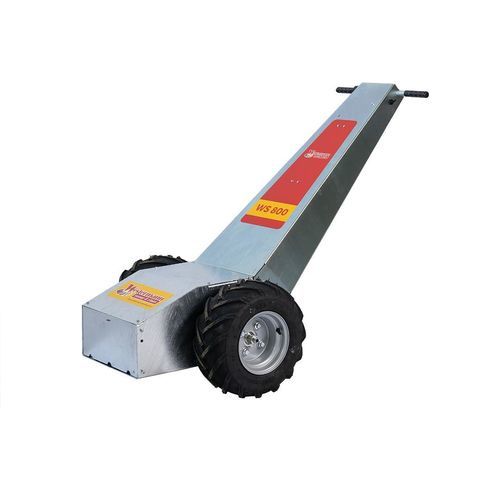

Walk-behind sweeper WS 800 Vario

for barnsfront-mountelectric

Quiet and simple
The WS 800 Vario is easy to operate, runs with low noise and zero local emissions. Fitted with a slurry scraper it cleans right up to the edges and can be fitted with a pushing shield, feed pusher or tipping bucket for combined cleaning and feeding tasks.

Applications / Key functions

• Low-noise operation with zero emissions
• Edge cleaning with slurry scraper
• Optional pushing shield, feed pusher or tipping bucket for flexible tasks

Accessories (examples shown on page)

• Pushing shield 80 - 160 (for narrow passages)
• Feed pusher (for a clean feed table)
• Scraper ASS (800/900) | ASS (800/900) E (fast cleaning)
• Tipping bucket (collector)

Technical specifications (table)
Speed: up to 7 km/h, infinitely variable via potentiometer
Power: 800 Watt
Charger: electronic with 24 V (with overcharge protection)
Duration of use: up to 100 min.
Capacity: 24 V (2 x 12V) 60 Ah drive and lighting battery
Working width: 800 mm (with scraper)
Length: 1400 mm (without scraper)
Width: 710 mm
Height: 1050 mm
Weight: 130 kg
Chassis: 3 mm galvanized
Tyres: AS Tyres 16 x 6.50-8

The quick stable helper
A versatile, stable helper designed for modern stable tasks: quiet operation and multiple attachment options to suit both cleaning and feeding applications.

Specifications / technical data

• Speed: up to 7 km/h, infinitely variable via potentiometer
• Power: 800 Watt
• Charger: electronic 24 V with overcharge protection
• Operating duration: up to 100 minutes
• Battery: 24 V (2 x 12 V), 60 Ah for drive and lighting
• Working width: 800 mm (with scraper)
• Length (without scraper): 1400 mm
• Width: 710 mm
• Height: 1050 mm
• Weight: 130 kg
• Chassis: 3 mm galvanized
• Tyres: AS Tyres 16 x 6.50-8
