Silo protective cover

polyestersteelbiogas

Product overview

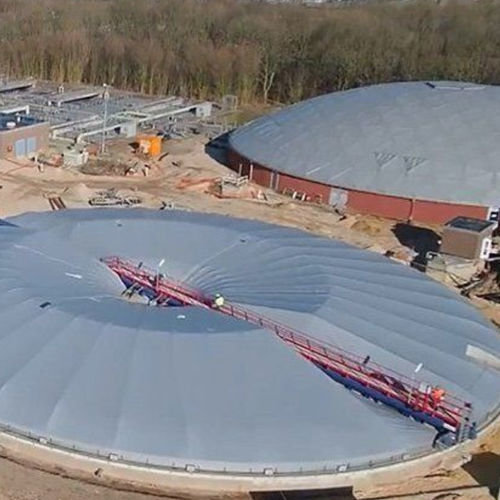

The Silocover silo roof is a flexible membrane cover designed to reduce CO2 and odour emissions and to exclude rainwater. Suitable for concrete, steel and plastic silos, it is offered in gas-tight and non-gas-tight variants. Manufactured from heavy-duty coated polyester, the system meets current environmental legislation and industry certifications.

Silo Roof Features

• Grey flexible membrane with reinforced straps
• Edge pipe system with tensioning sets for retensioning
• Standard concrete central column (stainless steel optional)
• Inspection opening with rain protection; additional openings available
• Delivered ready for installation, custom-made per silo diameter

Silo Roof Advantages

• Designed for long service life under aggressive media (manure, sludge)
• Reduced odour emissions and improved gas containment
• Quick delivery and tailored on-site installation
• Easy access for maintenance and overhaul of internal equipment
• Complies with environmental and structural guidelines across Europe
• Company certifications: KOMO, KIWA, VCA, ISO 9001:2015

Available options

• Additional inspection openings with rain protection
• Gas-tight engineered version for biogas and gas storage
• Eco-friendly material options
• Stainless steel central column and custom fittings

Applications

• Covering all types of silos (manure, sludge, waste streams)
• Gas-tight cover for storage of biogas generated on-site
• Gas storage for process gases from waste or agricultural residues
• Water and wastewater storage tanks (custom designs)

Design & compliance
The cover is manufactured from heavy-duty polyester fabric coated on both sides to resist manure and aggressive substances and to withstand extreme weather. Each installation is structurally calculated for local wind and snow loads. The edge pipe and tensioning system transfers forces from the ridge plate to the silo circumference and allows re-tensioning. The product conforms to environmental legislation and structural engineering guidelines.

Installation & service
Silocover roofs are delivered ready for use. Installation is fast and adapted to each silo; inspection openings provide service access to mixers and internal equipment. Retensioning and maintenance access are integrated in the system design.

Example projects / dimensions

• Silo Roof | Long (Belgium) — Ø9.80 m x 4.00 m — Medium: Biogas
• Silo Roof | Den Bosch — Medium: Sewage water storage
• Silo Roof | Texas, USA — Ø30.6 m x 4.75 m — Medium: Water storage
• Silo Roof | United Arab Emirates — Ø59.34 m x 6.86 m — Medium: Water storage
• Silo Roofs | Losser — 3 x Ø17.52 m x 3.5 m — Medium: Water storage
• Silo Roofs | Zwolle — 2 x Ø11.27 m — Medium: Thin and thick sludge storage

Technical specifications

• Material: heavy-duty polyester fabric with plastic coating on both sides
• Color: grey flexible membrane
• Reinforcement: straps and edge pipe system with tensioning sets
• Central column: concrete standard; stainless steel optional
• Inspection: standard inspection opening with rain protection; extras optional
• Versions: gas-tight and non-gas-tight
• Resistance: designed to resist manure, aggressive substances and extreme weather
• Structural design: project-specific calculation for wind and snow loads; retensioning capability
• Compliance & certification: KOMO-certified; company certifications include KIWA, VCA, ISO 9001:2015
• Customization: bespoke design per silo geometry and application
