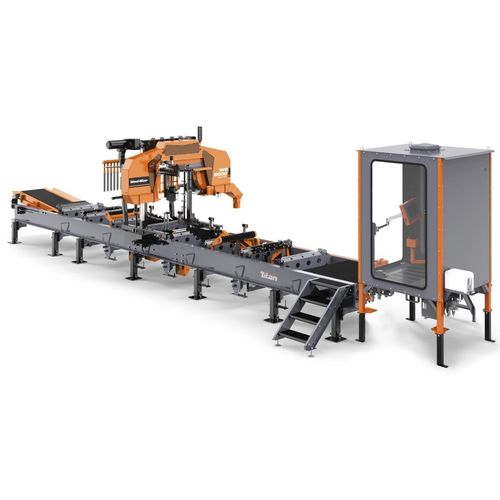

Band sawmill WB2000

horizontalstationaryelectric

Wood-Mizer’s knowledge of customer needs in international markets has delivered a sawmill that is the best that both narrow and wideband technologies have to offer. Wood-Mizer’s WB2000 features heavy-duty construction, low maintenance requirements, and efficient operation. The WB2000 uses wideband 75 mm blades or 100 mm stellite-tipped blades. When using 75 mm blades (available with 22.22 mm and 28.50 mm tooth spacing) the sawmill is especially cost-efficient in terms of blade maintenance costs. To ensure the best visibility of the cutting and log handling processes we offer an optional live-feed video system with two cameras as standard, expandable up to four cameras. The PRO version of the sawmill uses an automatic PLC setworks system. The 12-inch touch-screen displays various parameters such as the dimensions of the material, current head height, feed position and main engine power. To adjust these parameters, the operator simply has to use the touch screen to enter new settings. The EC version uses a 5.7-inch touch-screen with the latest version of the SW PLC3 Setworks system. The modern, heavy-duty bed has a log capacity of up to 6 tonnes. The massive twin C-channel steel beams that make up the frame are 400 mm tall by 110 mm wide. All hydraulic log handling functions - such as the log clamps, chain turners, power rollers, side supports and hold-down clamps - are modular, and can be moved to different bunks as needed.
