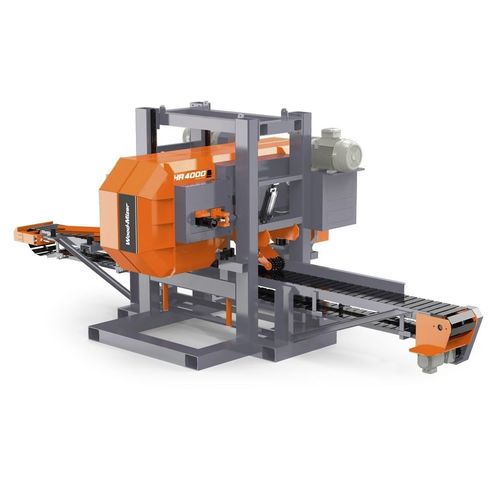

Band sawmill HR4000

horizontalstationaryelectric

The TITAN HR4000 Twin Head Resaw offers ultra-fast size changes during the resawing process. As little as 0.3 seconds is needed to change the size for each and every sideboard (depending on thickness), even when feeding at over 20 pieces per minute (depending on board length). As a result optimal recovery is achieved, unlocking extra product that previously would have gone to waste. Importantly, no sorting of material is needed prior to this machine. With its large 100 - 125 mm (4-5 inch blades), the TITAN HR4000 model is capable of faster feed speeds, thereby offering higher production capacity. By using a Twin Head configuration, it is possible to make two cuts into each sideboard with only one pass. KEY FEATURES: • Feed speeds up to 60 m/min • Compatible for blade sizes: 100 or 125 mm • Throat width 430 mm • Single or twin-head configurations • Electric servo sizing system for fast size changes – under 0.3 seconds! (depending on thickness) • Heavy duty slatt-chain feed with variable speed • Powered hold-down rollers on both the in- and out-feeds for fast, accurate material feed • Robust TITAN headrig column for high strain, high speed sawmilling * available in single or twin head configurations
