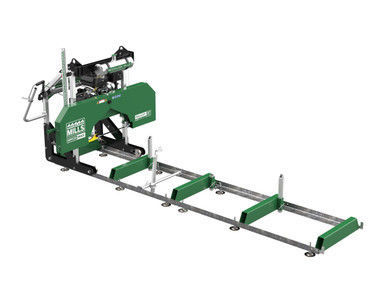

Band sawmill HM126MAX

horizontalportablegasoline engine

Product overview
The HM126MAX expands the original HM126 platform to increase cutting capacity while maintaining simple, field-serviceable design. Built for hobbyists, homesteaders and custom sawyers, it combines portability with the ability to produce wide boards and live-edge slabs for furniture, timber framing and building projects.

Key benefits
The FULLCUT™ Sawhead provides a true 26" (66 cm) maximum cut width matching the mill's 26" log diameter capacity, yielding more usable lumber per log. The 14 HP Kohler engine, Gas & Go centrifugal clutch and patented auto-lube streamline startup and blade engagement for straightforward operation in the field.

Features

• Wide-capacity FULLCUT™ Sawhead — 26" (66 cm) cut width for maximum yield.
• 14 HP Kohler 4-cycle engine — manual or electric start options; Quad-Clean 4-stage air filtration.
• Patented Gas & Go Auto Lube System — simultaneous engine, blade and lube engagement for simplified operation.
• RapidChange® Blade System — tool-less blade changes with Belleville washers for consistent tension and shock absorption.
• Pre-assembled sawhead — key components pre-assembled to reduce setup time.
• Optional Power Head — allows motorized raising/lowering of the sawhead for improved efficiency.
• 10 L aluminum lubricant tank with needle valve — weather-resistant and precise flow control.
• Glass-filled nylon U-bushings and dual race bearing carriage wheels — smooth, stable sawhead-to-carriage connection.
• Auto-locking sawhead and adjustable blade guide with stainless steel V-roller blade support.
• Comprehensive magnetic log scale with presets and kerf allowances for consistent board thicknesses.
• Powder-coated steel side-hinged blade guards for easy maintenance and blade access.
• Adjustable throttle configuration and ergonomic push handle positions for operator comfort.
• Precision L-rail track system — standard up to 10'5" (3.1 m) with optional extensions available.
• Expandable track sections (6'5" or 2'6") and additional clamp/support options to mill longer logs.
• Quick-lock log clamp plus included short and long log supports for reliable securing.
• Optional Woodlander® trailer package for mobility, better working height and on-site leveling.
• Machine-balanced bandwheels and thin-kerf hardened tipped blades — improved cut quality and minimal kerf (0.080" / 2 mm).
• Wide range of optional accessories — blades, maintenance kits, covers, log handling tools, lapsiding attachment and more.

Technical specifications

• Engine: Kohler 14 HP (manual start or electric start option)
• Log diameter capacity: 26" (66 cm)
• Maximum cut width: 26" (66 cm)
• Maximum board thickness: 7" (18 cm)
• Standard cutting length: 10'5" (3.1 m)
• Blade engagement system: Centrifugal clutch (Gas & Go)
• RapidChange® Blade System: Yes
• Adjustable blade guide: Yes
• Blade size: 144 x 1-1/4" (3658 x 32 mm)
• Bandwheel diameter (cast iron): 19" (48 cm)
• Lubrication system: Patented auto lubrication system
• Lubricant tank: 10 L aluminum
• Product weight: 797 lb (362 kg)
• Shipping weight: 955 lb (433 kg)
• Leveling feet: 12
• Log clamps: 1 x quick-lock
• Track width: 30-1/2" (77.5 cm)
• Track rails: Precision L-rails (included)
• Track bunks: 3 x 6" (75 x 150 mm)
• Track extension length: 6'5" (1.95 m)
• 4-post head design: Yes
• Finish: Powder coat paint / Galvanized steel
• Hour meter: Yes
