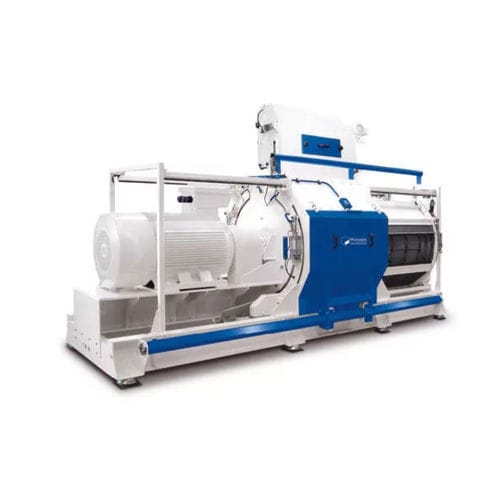

Grain mill GHM

for animal feedhammerstationary

When developing its hammer mill GHM, Wynveen was able to draw on decades of experience in grinding and milling raw materials for the animal feed, aqua feed and pet food industry. The GHM series are equipped with adjustable breaker plates which can be positioned vertically according to the direction of rotation. Placing the breaker plates at two different positions create an asymmetric formed grinding chamber. This results in a remarkable increase in impact forces thus less wear on the screens and a smooth flow of product through the grinding chamber. The hammer mill can be combined with our hammer mill feed unit. General Capacities of 5 – 60 t/h depending on: •Type of product •Screen perforation •Moisture content of the product Application area Grinding of derivatives and/or combinations of derivatives and grain in the: •Compound feed/animal feed industry •Pet food industry •Aqua feed industry •Bio industry Features Hammer Mill GHM •Maximum installed power 400 kW •Suitable for grinding in a grinding hopper •Suitable for grinding with total aspiration •Interchangeable screen cassettes •Central intake •Two directions of rotation •High-speed motors 1500 rpm •Frequency-controlled motor for coarse “structure” grinding •Temperature sensors on main bearings •Temperature sensors on the grinding chamber •Maximum screen area 2.32 m² •Adjustable baffle plates
