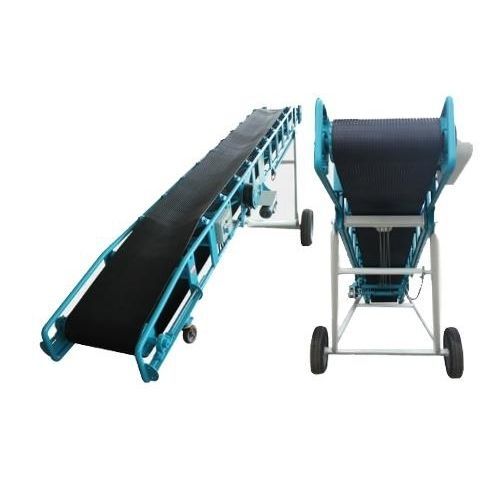

Feed conveyor CLB series
beltmobileheight-adjustable

feed conveyor
feed conveyor
Add to favorites
Compare this product


Characteristics

Applications
feed
Technology
belt
Other characteristic
mobile, inclined, height-adjustable

Description

Band width: 600, 800 - 1000 mm according to working conditions. Belt thickness: 8, 10, 14 mm according to request. Tape feature: flat, louvered or sergeant tape with tse certificate and court cloth is used according to the order. Band chassis width: It is determined according to band width. Belt chassis features: Conveyor belt chassis in the standard 1 1/2 "material is made of. Top roller features: Made of 2 1/2 "material with 300 mm length, 6204 zz bearings are used inside, Pads are used to prevent dust and water from getting into the bearings. Sub-reel features: 630 mm long 2 1/2 "material, 6204 zz bearing is used inside, Pads are used to prevent dust and water from getting into the bearings. Drive drum features: Drive drum with a diameter of 220 mm and is threaded to 20 x 10 l with a diameter of 630 mm and on the drum with an interval of 20 mm. The bearing of the drums is equipped with a UCP 210 bearing. 1.1, 1.5, 2.2, 3, 4, 5.5 kw 60 d / d 380 or 220 volt gearmotor are used in the belt moving parts. The drive motor of the conveyor belt is mounted between the chassis. The conveyor belt is manufactured with a back-back function. Lifting and lowering of the belt can be done with motorized system or manual mechanical system. 8 mm hemp core steel rope is used as lifting rope. There is an anchoring chain of 8 mm for the safety of the belt. 4 wheels are used in the drive. Electrical installation (panel system and minimum 10 m cable included).
