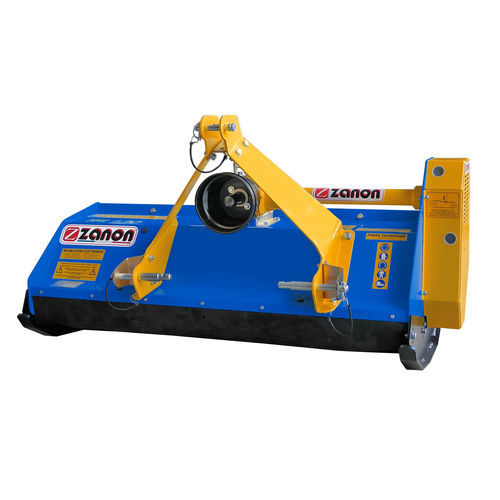

Rear-mount mulcher TFL series
hammerbladegrass

Rear-mount mulcher - TFL series - ZANON Srl - hammer / blade / grass
Rear-mount mulcher - TFL series - ZANON Srl - hammer / blade / grass
Rear-mount mulcher - TFL series - ZANON Srl - hammer / blade / grass - image - 2
Rear-mount mulcher - TFL series - ZANON Srl - hammer / blade / grass - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the ZANON Srl website for more information

Characteristics

Type
rear-mount
Technology
hammer, blade
Applications
grass, for landscaping
Number of hammers
16 hammers, 18 hammers, 22 hammers, 14 hammers
Number of knives
32 knives, 36 knives, 28 knives, 44 knives
Other characteristic
PTO-driven, hydraulic, for tractors, fixed
Cutting width

100 cm, 115 cm, 130 cm
(39.37 in, 45.28 in, 51.18 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 40 ch
(40 hp)

Min.: 12 ch
(12 hp)

Weight

190 kg, 205 kg, 220 kg, 235 kg
(418.88 lb, 451.95 lb, 485.02 lb, 518.09 lb)

Description

Mulcher light duty • Fixed 3-point linkage • Helical cutting system • It cuts prunings of max. ø 3cm The TFL mulcher is designed for mounting on low power tractors (12 to 40 HP). It is ideal for mulching twigs, grass, brushwood, hay and more besides. Standard equipment • Gearbox with freewheel clutch PTO 1 3/8” Z6 • Rotor with helical cutting system • 3-point linkage fixed • Corner reinforcement for shredding material • Height-adjustable skids • Belt adjuster • Rear levelling roller height adjustable (114 mm) • Scraper for rear levelling roller • Discharge of the material over the levelling roller • Opening hood (for inspection only) • Front protection with rubber • Rear protection with rubber • Protective equipment as per EC safety rules
