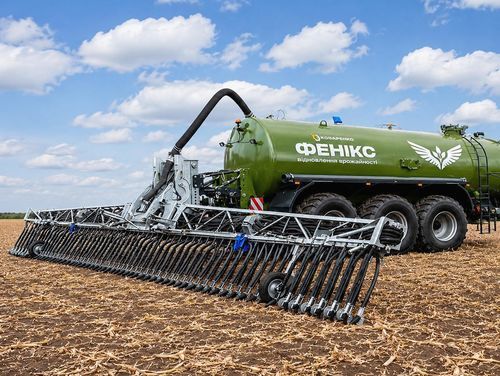

Tractor-mounted fertilizer spreader VNC-28 PHOENIX

liquidfolding

Overview
VNC-28 PHOENIX is a high-performance tanker for liquid fertilizers designed for modern precision farming. With a 28 m³ capacity and the X-Trail 18.2 distributor, it ensures uniform application and stable operation on different soil types. A built-in speed sensor and virtual terminal guarantee accurate dosing even without or under unstable GPS signal. The machine easily integrates with tillage implements, expanding its capabilities. It is a reliable solution for improving efficiency and reducing costs.

Main features

• Precision application — supports precision agriculture: field maps and automatic rate adjustment depending on soil needs; the system accounts for tractor speed and application width to regulate liquid flow.
• Minimal soil compaction — large wheels and hydraulic suspension reduce soil compaction and provide smooth movement across uneven fields.
• Wheel rotation sensor — provides accurate travel speed measurements when GPS signal is unavailable or unstable, ensuring consistent dosing.

Technical data for the base configuration
Model: VNC-28
Volume, m³: 28
Suspension: hydraulic
Number of axles: 3
Metal thickness, mm: 8
Total (gross) weight, kg: 41 000
Working width: 18 m
Distribution type: boom distributor
Number of distribution hoses: 72 pcs
Approx. spacing between hoses: 25 cm
Hitch: universal, category III
Hose diameter: 38 mm
Opening / folding time: 25–30 sec
Required oil flow: 80 l/min
Wheel size: 750/60 R30.5
Required tractor power: 400 hp
*All technical data are provided without additional equipment. The permissible deviation of actual values is ±2%.

Working principle
Water and liquid organic fertilizer tanker trailers with a 28 m³ capacity used for filling, transporting and applying liquid organic fertilizers, as well as for delivering water and pesticide spray solutions. It works on the principle of precision agriculture: you upload a field map, and the system automatically adjusts the application rate for each area depending on soil needs. The computer takes into account the tractor’s speed, application width, and automatically regulates the liquid flow. Large wheels and hydraulic suspension reduce soil compaction and ensure smooth movement across uneven fields.

Characteristics / Technical specifications

• Model: VNC-28
• Volume: 28 m³
• Suspension: hydraulic
• Number of axles: 3
• Metal thickness: 8 mm
• Gross (total) weight: 41 000 kg
• Working width: 18 m
• Distribution: boom distributor
• Distribution hoses: 72 pcs
• Hose spacing: ~25 cm
• Hose diameter: 38 mm
• Opening/folding time: 25–30 sec
• Required oil flow: 80 l/min
• Wheel size: 750/60 R30.5
• Required tractor power: 400 hp
