Loader wagon TK-12

mounted2-axlefor bales

Overview
The self-loading bale trailer TK-12 is designed for quick picking, transporting and stacking rectangular bales of straw or hay. The special design of the tongue picks up bales from the field, lifts them onto the platform, and hydraulic unloading ensures neat stacking. With a capacity of up to 12 bales and compatibility with tractors from 185 hp, the TK-12 is a practical machine for agricultural bale handling.

Summary
Number of bales: 12
Bale size (example): 2.4 x 1.2 x 0.9 m
Tractor power required: 185 hp

How it works

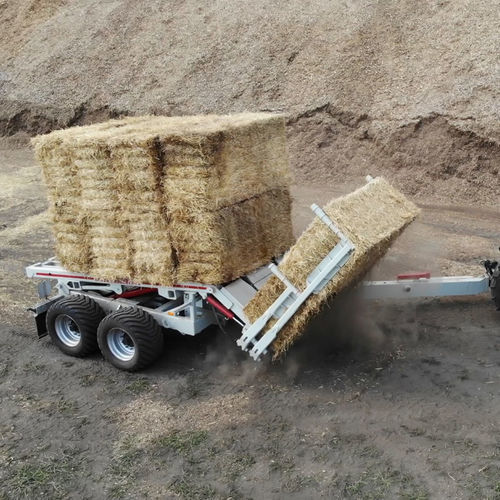

The TK-12 self-loading bale wagon picks up rectangular bales from the field, transports them and stacks them at the destination. Bales are gripped by the tongue mechanism (gripping from both sides and lifting onto the platform). A key feature is the simultaneous loading of two rectangular bales onto the platform.
On the platform, bales are pushed backwards by a conveyor and secured by two posts; the racks retract when bales are reloaded.
When fully loaded, unloading is performed in a pile on a flat, firm surface. All operations are controlled by the operator from the tractor cab.

Performance

• Productivity – 180 bales per hour.
• Unloading a bale truck takes 30–40 seconds.

Complete set of TK-12

• Balance suspension, half-axle ADR 90×90 (Italy) – 4 pcs.
• BKT wheels (India).
• Pronar disks (Poland).
• Mechanical support.
• Trailer ring options: 40, 50, 90 mm Sharmuller (Austria).
• 12 volt electrical system.
• Joystick control from the tractor cab.
• Low maintenance hydraulic system.

Technical data for the base configuration
Semi-trailer-truckloader — TK-12
Dimensions, m / number of bales: 2.4×1.2×0.9 – 12 pcs; 2.4×1.2×0.8 – 12 pcs; 2.4×1.2×0.7 – 14 pcs
Maximum bale weight, kg: 1 360
Load capacity, kg: tongue structures – 2 000; platforms – 11 340
Weight, kg — own: 8 350
Weight, kg — full: 19 690
Transport dimensions, mm — length: 8 730; width: 3 630; height: 3 980
Half axles: 90×90 – 4 pcs
Wheel size: 550/45-22.5
Required tractor hp: 185
*All technical data are provided without additional equipment. The permissible deviation of actual values is ±2%.

Technical specifications

• Model: TK-12
• Type: Self-loading bale trailer / semi-trailer-truckloader
• Number of bales (typical): 12 pcs (depending on bale dimensions)
• Bale dimensions supported: 2.4×1.2×0.9 m (other sizes supported with capacity variants)
• Maximum bale weight: 1 360 kg
• Load capacity (tongue): 2 000 kg
• Load capacity (platforms): 11 340 kg
• Own weight: 8 350 kg
• Gross weight (full): 19 690 kg
• Transport length: 8 730 mm
• Transport width: 3 630 mm
• Transport height: 3 980 mm
• Half axles: 90×90 (4 pcs)
• Wheel size: 550/45-22.5
• Required tractor power: 185 hp
