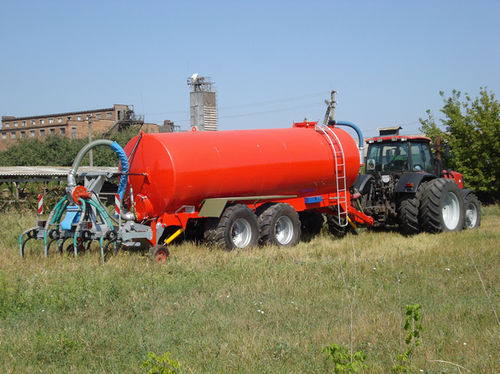

2-axle slurry tanker VNC Series

Standard equipment: - Barrels are made of metal 6 mm thick. It is covered by anticorrosion paint - 2 hemispherical windows Ø 2’’ - Safety valve for pressure. Vacuum safety valve. Shut-off valve for pump protection - Self-cleaning siphon - Manometer for pressure and vacuum control, Ø 100 mm - 3 flanges: at the left, at the right, behind - 6 meter PVC pipe Ø150(6’’). Clamps for pipes - 2 hatches of access: above and behind Ø 550 mm - Lateral mechanical latch Ø150 mm. Back hydraulic latch Ø150 mm - Vacuum pump МЕС 8500 (8500 l/minute) with automatic supply of greasing - Ejector distributor - 12 (24) Volts illumination. - Height subchain regulation. Towed plug-in ring Ø90. Hydraulic mounting of pole - Pneumatic brake system - Service ladder Additional equipment: - Lateral hydraulic manipulator for loading material sleeve regulation (up-down, right-left) - Accelerator turbine for deflation, has electron gun - Accelerator turbine for pumping destified materials and increasing fence depth to 5m - Hydraulic blender is build in cistern - Adaptation for cultivator button - Towed ring Ø40 or 50 mm. - Cultivator for fertilizers introduction into the earth: with straw pulp chopper or without straw pulp chopper - Electrical block for linking-up 5 pairs of hydroexits - Drive shaft Bondioli & Pavezi - Top hatch openes hydraulically
