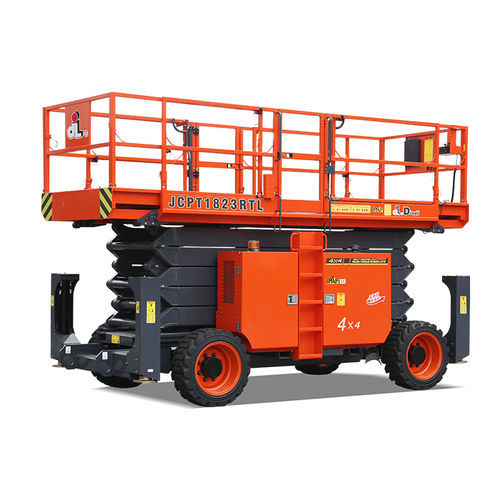

Pruning aerial platform JCPT1823RTL

self-propelled

● Equipped with integrated axle, they meet the requirements of 4x2 drive&steering, offer flexible operation and strong rough-terrain performance. ● The diesel model is equipped with low power engine, which is more energy-saving. ● With maximum load of 680kg and maximum working height of 18m, the large platform enbles more than one people to work at the same time. ● They feature 3.98m*1.83m working platform and the two-way extension deck lengths are 1.43m and 1.16m respectively, which can be stopped at any point, making the operation more convenient. ●With configuration of one key leveling function, automatic leveling, ensuring the machine much safer and more stable. ● The machine dimension is 4.88m*2.29m*2.49m in length, width and height respectively, which makes it convenient for transportation and suitable for container size. Max. Platform Height:16.00m/52ft 6in Overall Length(Without Outriggers):/ Overall Length(With Outriggers):4.88m/16ft Overall Width:2.33m/7ft 8in Overall Height(Rails Up):3.23m/10ft 7in Overall Height(Rails Down):2.47m/8ft 1in Platform Size(Length×Width):3.98m×1.83m/13ft 1in ×6ft Platform Extension Size:1.43m/1.16m/4ft 8in/3ft 10in Ground Clearance(Stowed/Raised):0.30m/1ft Wheelbase:2.86m/9ft 5in Turning Radius(Inside/Outside):2.70m/5.50m/8ft 10in/18ft Tyres:315/55/D20/315/55/D20
