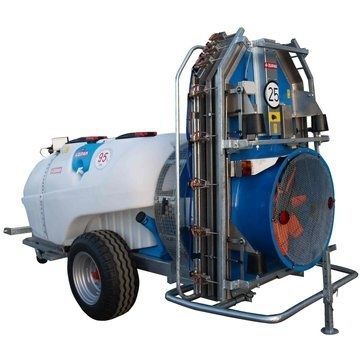

Towed sprayer ZM 1500 DT MAXIfor orchardshydraulicwith diaphragm pump
Add to favorites
Compare this product
Characteristics
- Mobility
- towed
- Application
- for orchards
- Technology
- hydraulic
- Other characteristics
- with diaphragm pump, air-assisted, electric, electrostatic
- Capacity
1,650 l
(435.9 gal)- Pump capacity
142 l/min
(37.5 us gal/min)- Pump pressure
50 bar
(725.2 psi)
Description
-Fan 2 x 700 mm, 111,000 m3/h
-High air rectifier for orchards
-8 nozzles from each side
-System cleaning tank 130 l
-Water tank for hand washing
-Double, turn able sprayer nozzles, with non-drop-valve, adjustable in level
-Two hydraulic mixers
-Hydraulic dust mixer
-Two step gearbox with idle run
-Tyres 13.0/55 - 16
-In width adjustable wheels
-Height- adjustable axle
-Central pressure filter
-Rotating tank washer
-Hot-dip galvanized frame
-Adjustable steering tow rod with P.t.o. shaft Walterscheid WWE2380
-Supporting wheel
-Lighting system
-Wheel pad
Accessories:
-El.diaphragm valves 2x + electric pressure control + control box with pressure gauge
-Air volume regulation on both sides - electric
-Adjusted air stream position change with memory button
-Air injected nozzles
-Electrostatics
