Colheitadeira para maçãs BERGLADY

para cerejasautopropelidade 1 linha

Présentation
Multifunctional use beyond harvest. The Berglady is an evolution of the Lady, developed to use the same base machine also outside the harvest period. Thanks to a reinforced construction and predefined mounting points for optional attachments, the Berglady expands harvesting capabilities and enables various maintenance tasks throughout the year.

Principaux avantages

• Multifunctional: same base machine can be equipped with a platform or harvesting pedestals for different tasks across the season.
• More power and stability: reinforced structure, more powerful motors, optional reduction gearboxes and a 48V system.
• High payload capability in field use: the product description indicates handling loads of up to around 600 kg in some configurations while the technical datasheet specifies crate transport and platform limits (see specifications).
• Good terrain capability: longer wheelbase and wider track for stability; energy recovery on descents to extend battery life in hilly orchards.
• Compatible with multiple optional attachments (platforms for 1 or 2 people, harvesting pedestals for medium/higher areas, additional battery packs, special wheels, vineyard seat, etc.).

Usage et applications
The Berglady is designed for harvest operations (lower, middle and higher tree zones when equipped with pedestals) and for year-round maintenance work (pruning, tying, thinning, hail-net work) when used with the platform add-on. It is particularly suitable for orchards with slopes (examples in text: usable on slopes up to around 40% with slope levelling active) and for growers who want to perform multiple tasks with one machine.

Harvesting pedestals & platform (options)

• Platform Standard (1 person) — row width approx. 2.30–2.70 m (option).
• Platform Wide (2 people) — row width approx. 2.70–3.50 m (option).
• Harvesting Pedestals – Medium Area — tree height approx. 1.50–2.70 m (option).
• Harvesting Pedestals – Higher Area — tree height approx. 2.20–3.50 m (option).
• Additional battery capacity (lithium) — selectable capacities (option).
• Special wheels for soil protection vs traction (option).
• Vineyard seat for defoliation/pruning (option).

Performance de cueillette et accès hauteur
The harvesting pedestals significantly increase reach: depending on model and slope, heights between approximately 2.30 m and 3.50 m can be reached. Pedestals can be adjusted to the respective row width (typical ranges reported: 2.20–3.50 m depending on planting system).

360° view & key product details

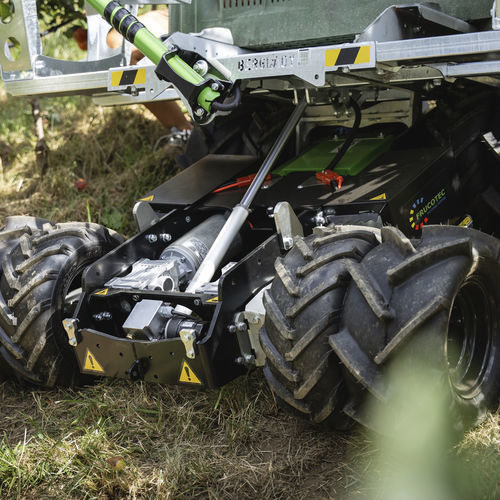

The product imagery and 360° view highlight features such as slope compensation with off-loading bin, width-adjustable chassis, double wheels on both front and rear axles (different wheels available), longer base frame, small picking box placement, adjustable angle/width and different standing heights.

Add-ons and configurability (summary)

• Platform variants for 1 or 2 persons (different row-width ranges).
• Harvesting pedestals for medium and higher areas (different reachable tree heights).
• Battery capacity upgrades (lithium packs, multiple kWh options).
• Special wheels to balance soil protection and traction.
• Accessories such as vineyard seat for pruning/defoliation.

Caractéristiques / spécifications techniques

• Engines: 2 DC motors, rated power 0.85 kW.
• Gearboxes: bevel spur gear.
• Brakes: electromagnetic.
• Steering: tank steering via joystick.
• Control system: forward and reverse travel via joystick.
• Batteries: lithium batteries, weight range approx. 7–20 kg (modular options and additional battery capacity available).
• Charger: electronically regulated 5–30 A as standard.
• Driving speed: stepless from 0 up to max. 4 km/h.
• Climbing ability: max. 20% upwards without slope compensation; max. 40% with maximum slope levelling; max. 15% side slope.
• Max. load capacity (datasheet): for crate transport 400 kg; on platform max. 200 kg (incl. persons). Note: marketing description references handling loads up to around 600 kg in certain configurations.
• Weight (unladen): approx. 250 kg + platform attachment 75/90 kg (depending on model).
• Tires: standard 16" × 6.50 × 8 (inside) – tractor profile options outside; optional 16" × 7.50 × 8 garden profile outside.
• Total length: approx. 1.55 / 1.70 m (depending on version).
• Total width: approx. 0.90 / 1.40 m (depending on version).
• Working platform (dimensions): length 0.90 m; width 0.90 / 1.20 m (depending on version); unfolded: 1.80 / 2.20 m (depending on version); working height approx. 1.30 m (platform specifics vary by variant).
• Reach with harvesting pedestals: approx. 2.30 m to 3.50 m depending on pedestal variant and slope.
